5' F07 GT LCI 535i Rear-axle-drive parts
Sponsored links
Sponsored links

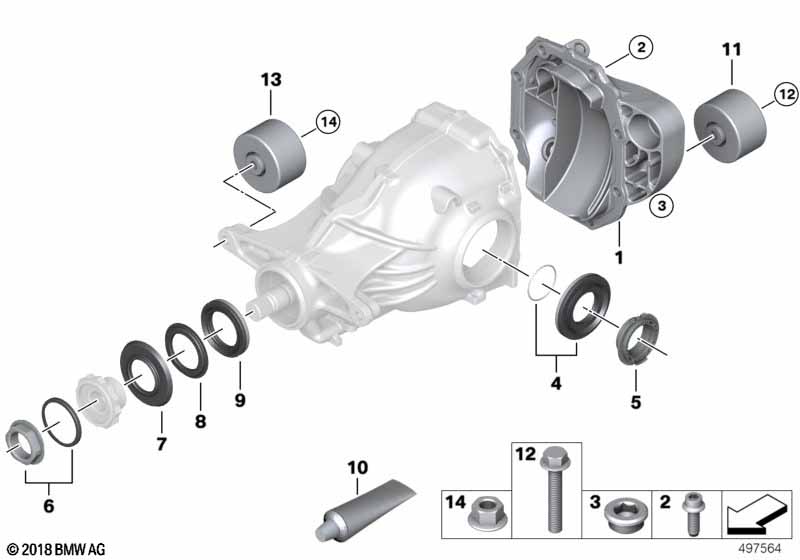

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, rear | 205AL | 1 | 33117573814 | |||||
| Note Repair Manual | |||||||||
| 02 | Flanged cap screw | M12X35-10.9ZNS3 | 8 | 07/2015 | 33117584375 | ENDED | |||
| Note Repair Manual | |||||||||
| 02 | Flanged cap screw | M12X35-10.9ZNNI | 8 | 33118650755 | |||||
| Note Repair Manual | |||||||||
| 03 | Screw plug with O-ring | M22X1,5-ZNS3 | 1 | 33117525064 | $3.91 | ||||
| Note Repair Manual | |||||||||
| 04 | Gasket set differential | TYP 188 / 205 | 2 | 33107564416 | $79.70 | ||||
| Note Repair Manual | |||||||||
| 06 | Repair kit insert nut | M39X1,5X20 | 1 | 33127607158 | |||||
| Note Repair Manual | |||||||||
| 07 | dustcover plate, small | 1 | 33121213903 | $1.30 | |||||
| Note Repair Manual | |||||||||
| 09 | Shaft seal | 45X75X10 AW 188 | 1 | 31507609535 | |||||
| only in conjunction with | |||||||||
| -- | Repair kit insert nut | M39X1,5X20 | 1 | 33127607158 | |||||
| Note Repair Manual | |||||||||
| 10 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | ||||
| Note Repair Manual | |||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
