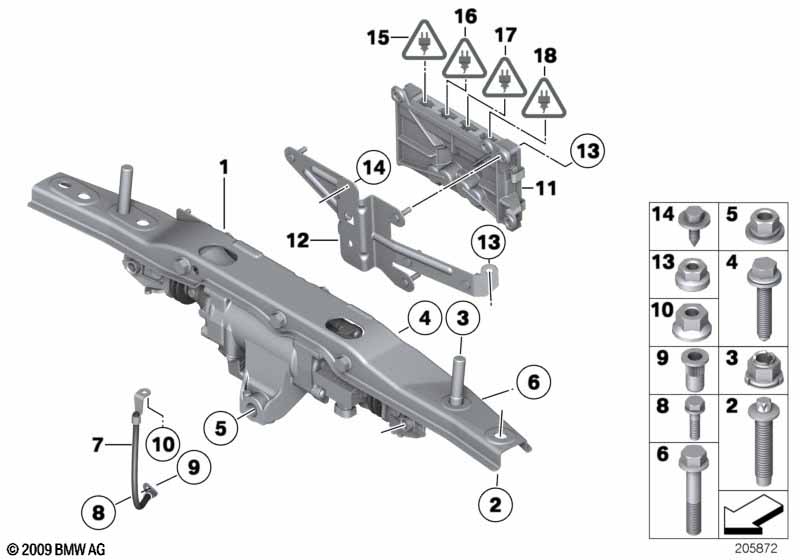

5' F07 GT LCI 535i Actuator for HSR/mounting parts/ECU

Sponsored links

No.	Description	Supp.	Qty	Part Number	Price
i	For vehicles with Integral active steering	S2VHA=Yes
01	Actuator for HSR		1	33346776295	$1317.24
02	Torx bolt, self-threading	M14X1,5X75-10.9	2	33306776072
03	Combination nut	M14X1,5-10ZNNIV	2	33306787062	$1.88
04	Hexagon screw with flange	M12X1,5X53-10.9	1	31106767497	$2.30
05	Self-locking collar nut	M12X1,5-10 ZNS3	1	33326760374	$1.90
06	Hexagon screw with flange	M12X1,5X67-10.9	2	07119906489	$2.42
07	Earth strap		1	33346785460
08	Hex bolt with washer	M6X22-U1ZNNIVSI	1	07119905526	$0.64
09	Blind rivet nut, flat headed	M6	1	07146989330	$1.25
10	Nut	M6	1	07146973709	$0.27
11	Control unit for HSR		1	33346854032
12	Bracket, control unit		1	33346789227
13	Hex nut wiht flange	M6	4	41248147832	$0.30
14	Sheet metal screw	ST6,3X16-ZNS3	2	07119905017	$0.38
15	Socket housing	12 POL.	1	61138364664	$0.63
	only in conjunction with
--	Contact bushing MQS ELA with cable	0,5-0,75 MM² AG	X	61130056384
--	Contact bushing MQS ELA with cable	0,35-0,5 MM² AG	X	61130056961
--	Covering cap	12 POL./Z-CODE	1	61138364652	$1.30
16	Socket housing	12 POL.	1	61138364664	$0.63
	only in conjunction with
--	Contact bushing MQS ELA with cable	0,5-0,75 MM² AG	X	61130056384
--	Contact bushing MQS ELA with cable	0,35-0,5 MM² AG	X	61130056961
--	Covering cap	12 POL./Z-CODE	1	61138364652	$1.30
17	Socket housing, uncloded	3 POL./ SLK 5,8	1	12527561109
	only in conjunction with
--	Socket terminal SLK 5.8 ELA	4,0-6,0MM² AG	X	12527514556	$0.50
18	Socket housing, uncloded	3 POL./ SLK 5,8	1	12527561109
	only in conjunction with
--	Socket terminal SLK 5.8 ELA	4,0-6,0MM² AG	X	12527514556	$0.50
