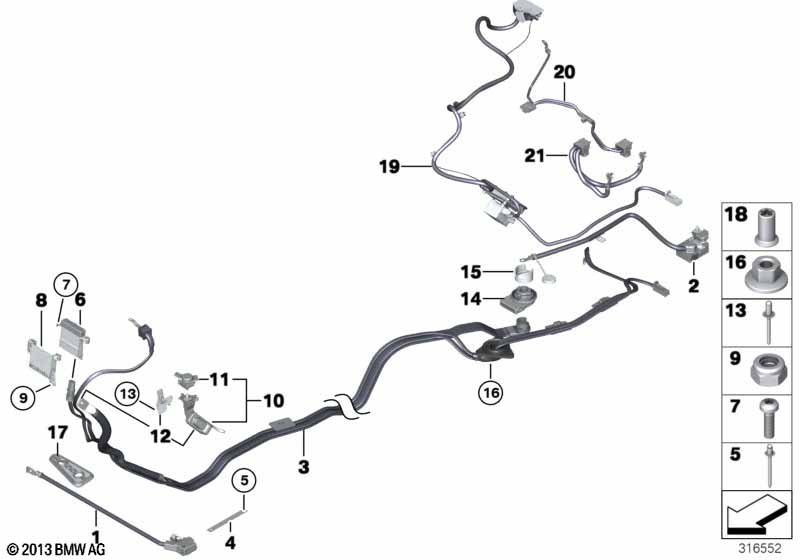

5' F07 GT LCI 535i Battery cable/earth cable
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable, negative, IBS | 1 | 61219302358 | ||||||
| 02 | Battery cable (plus pole) | SBK 2.2 | 1 | 61129217036 | |||||
| 03 | Battery cable positive, below-floor | 80 MM² | 1 | 61129348280 | |||||
| The transfer point should be greased with contact protection grease to protect against corrosion. |
|||||||||
| 03 | Battery cable positive, below-floor | 80 MM² | 1 | 03/2014 | 61129314499 | ENDED | |||
| only in conjunction with | |||||||||
| -- | Contact grease KF1 | 50G | 1 | 03/2014 | 83192295229 | ||||
| 05 | Blind rivet, flat headed | 5,0X9,5 | 2 | 07/2015 | 07147216857 | ENDED | |||
| 05 | Blind rivet, flat headed | 5,0X9,5 | 2 | 07147444158 | |||||
| 06 | B+ distribution point, front | 1 | 61149153418 | $11.60 | |||||
| 07 | Plastic bolt | 2 | 17217691639 | $1.29 | |||||
| 08 | Bracket for B+ distribution point, front | 1 | 61149153410 | $3.17 | |||||
| 09 | Self-locking hex nut | M 6 | 2 | 06/2007 | 61138367756 | $0.25 | ENDED | ||
| 09 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | ||||
| 10 | B+ terminal point, engine compartment | 1 | 07/2012 | 61149214243 | |||||
| 11 | B+ terminal point cover,engine compartm. | 1 | 61149192666 | ||||||
| 12 | Holder | 1 | 61149192667 | ||||||
| 13 | Blind rivet | 2 | 51417068752 | $0.37 | |||||
| 15 | Retainer | 1 | 61139180190 | ||||||
| 16 | Self-locking hex nut | M6 | 3 | 07149166256 | $0.36 | ||||
| 17 | Grommet f battery cable | 1 | 61139175309 | ||||||
| 18 | Hex nut for grounding point | M8 | 1 | 07147600861 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
