5' F07 GT LCI 535i Comb type connector
Sponsored links
Sponsored links

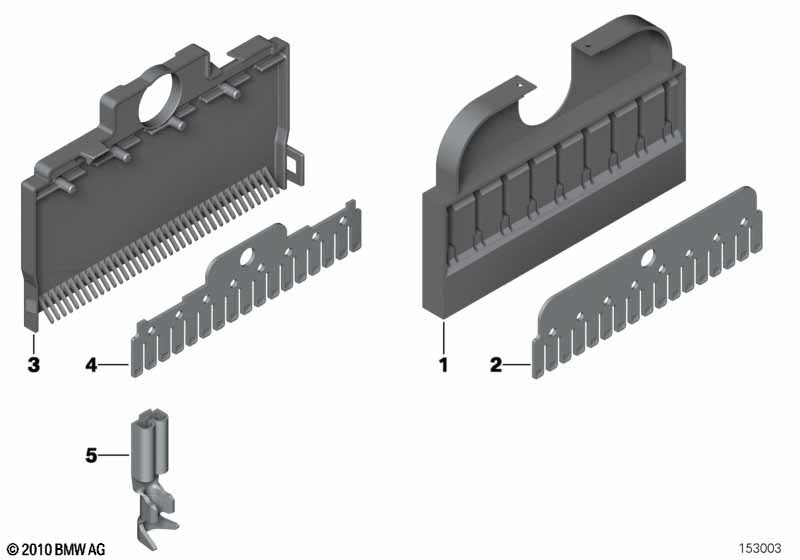

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| Interior | |||||||||
| 01 | Insulation housing, fan connector | 17 POL. | X | 61138364551 | $0.93 | ||||
| only in conjunction with | |||||||||
| -- | Comb type connector | 17 POL. / M6 | X | 61138353739 | $2.00 | ||||
| 02 | Comb type connector | 17 POL. / M6 | X | 61138353739 | $2.00 | ||||
| Engine compartment | |||||||||
| 03 | Insulation housing, fan connector | 17 POL. | X | 07/2016 | 61136941424 | $1.00 | ENDED | ||
| only in conjunction with | |||||||||
| -- | Comb type connector | 17 POL. / M6 | X | 07/2016 | 61138387151 | $2.00 | |||
| Sealing putty, see Diagram 83_0372 | |||||||||
| 03 | Insulation housing, fan connector | 17 POL. | X | 61136825781 | |||||
| only in conjunction with | |||||||||
| -- | Comb type connector | 17 POL. / M6 | X | 61138387151 | $2.00 | ||||
| Sealing putty, see Diagram 83_0372 | |||||||||
| 04 | Comb type connector | 17 POL. / M6 | X | 61138387151 | $2.00 | ||||
| 05 | Flat contact, fan connector | 0,35-0,5 MM² | X | 61131387140 | $0.35 | ||||
| 05 | Flat contact, fan connector | 0,75-1,0 MM² | X | 61131387142 | $0.28 | ||||
| 05 | Flat contact, fan connector | 1,5-2,5 MM? | X | 61131387144 | $0.28 | ||||
| 05 | Flat contact, fan connector | 4,0-6,0 MM² | X | 61131387146 | $0.43 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
