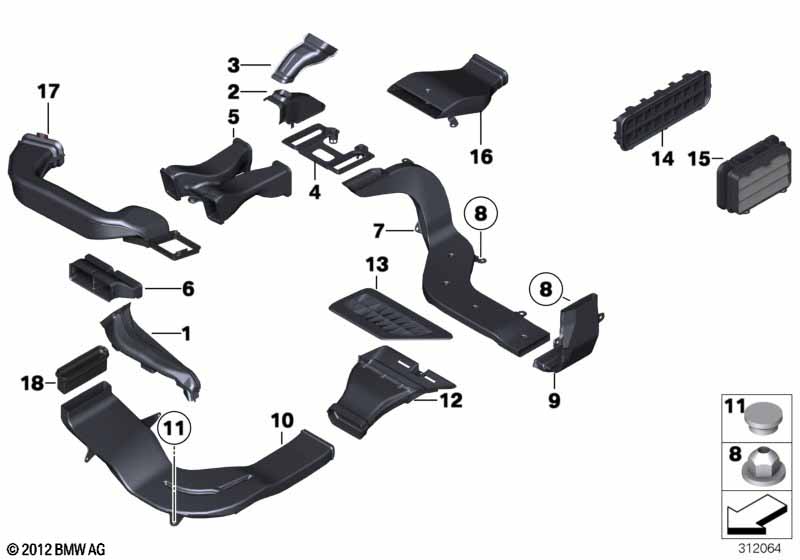

5' F07 GT LCI 535i Air channel

Air channel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air duct, footwell, driver's side 1 51459112176
01 Air duct, footwell, passenger side 1 64229112177
03 Air duct, rear compartment, rear left 1 51169178685
03 Air duct, rear compartment, rear right 1 51169178686
06 Adapter for air duct 1 03/2016 64229113859 ENDED
06 Adapter for air duct 1 64229397743
07 Air duct, B-pillar, inner left 1 64229119945
07 Air duct, B-pillar, inner right 1 64229119946
08 Cap nut M5 2 51711934930 $0.23
09 Air duct, B-pillar, outer left 1 64229136927
09 Air duct, B-pillar, outer right 1 64229136928
10 Air duct, rear compartment, front left 1 64229113013 +core
10 Air duct, rear compartment, front right 1 64229113014 +core
11 Plug, black D=5MM 6 52208133466 $0.50
15 Rear ventilation 2 64229122453 $11.95
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=No
16 Air duct, rear compartment, rear left 1 64229136935
16 Air duct, rear compartment, rear right 1 64229136936
17 Cold air duct left 1 51459142606
17 Cold air duct right 1 51459142607
18 Adapter for air duct 2 64119145229
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
