5' F07 GT LCI 535i Fuel supply system, auxiliary heater

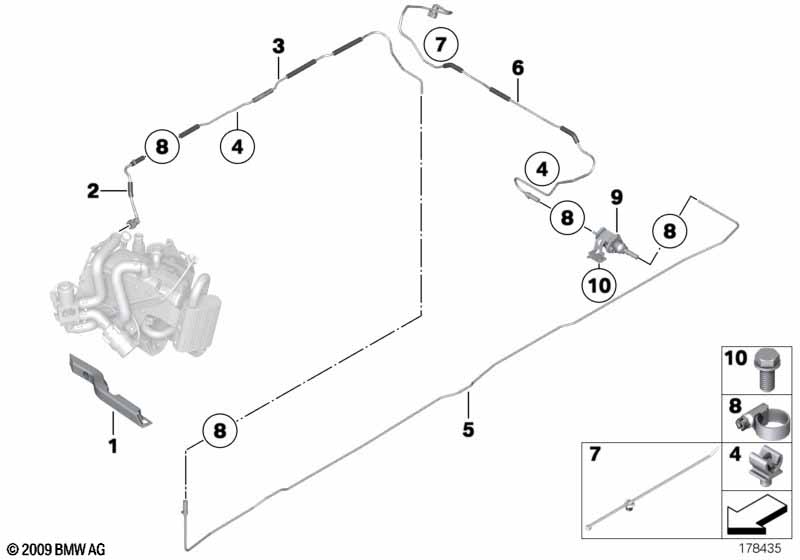

Fuel supply system, auxiliary heater
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Holder 1 64129308286
03 Auxiliary heating fuel pipe 1 64129119172
04 Holder 1 34306766380 $0.35
05 Auxiliary heating fuel pipe 1 64129317852
06 Fuel suction line 1 01/2014 64129203841 ENDED
06 Fuel suction line 1 64129324791
07 Cable strap with bracket Ø=7,9 / L=200 1 61136914992 $0.50
08 Hose clamp 9,4 - 11,9MM 5 16141183085 $0.77
09 Fuel pump SCHWARZ 1 09/2013 64129181458
09 Fuel pump 1 09/2013 64129312641
10 Hex bolt with washer M6X12-U1-ZNS3 1 01/2006 07119903843 $0.53 ENDED
10 Hex bolt with washer M6X12-U1-8.8 1 07119904517 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
