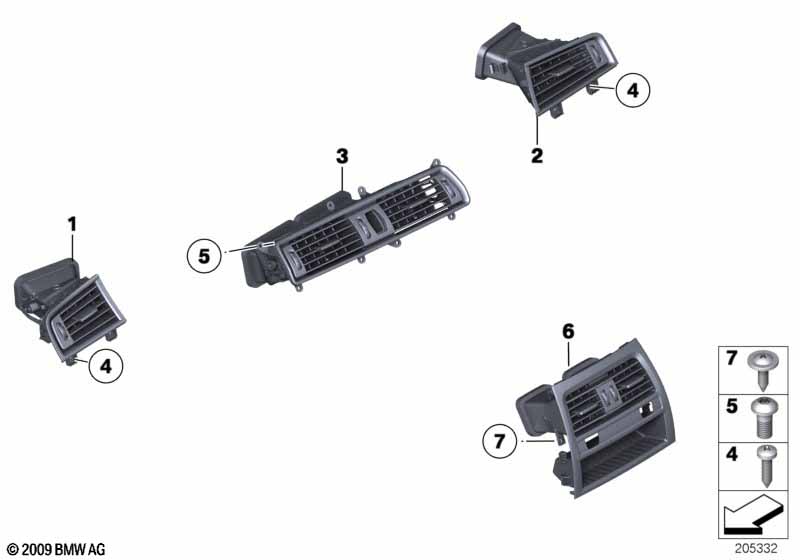

5' F07 GT LCI 535i Fresh air grille

Fresh air grille
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=Yes
01 Fresh air grille, left 1 64229142588
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=No
01 Fresh air grille, left 1 64229142582
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=Yes
02 Fresh air grille, right 1 64229142589
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=No
02 Fresh air grille, right 1 64229142583
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=Yes
03 Fresh air grille center 1 64229142590
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=No
03 Fresh air grille center 1 64229142584
04 Fillister head screw TS4X20 ISA 4 03/2009 07149218267 ENDED
04 Oval-head screw with washer DELTA PT4X20 4 07149185673
05 Screw for thermoplastic plastics 4X10 T20 8 07147118899 $0.53
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=Yes
06 Fresh air grille rear room 1 64229181095
For vehicles with
Seat heating, rear
and
Autom. climate control with 4-zone ctrl

S496A=Yes

S4NBA=No
06 Fresh air grille rear room 1 64229181094
For vehicles with
Seat heating, rear
and
Autom. climate control with 4-zone ctrl

S496A=No

S4NBA=No
06 Fresh air grille rear room 1 51169178350
07 Fillister head self-tapp.screw w collar 4 07146957954 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
