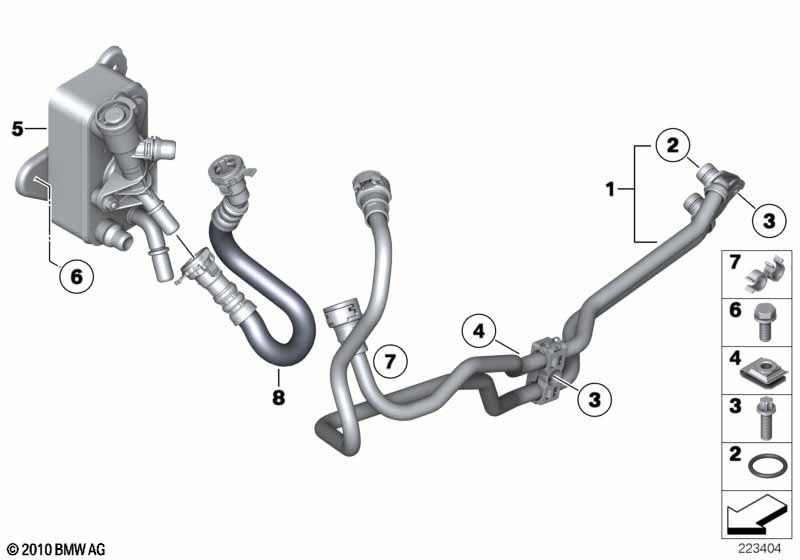

5' F07 GT LCI 530d Oil-cooler pipe/heat exchanger

Oil-cooler pipe/heat exchanger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission oil cooler line 1 17228509993
02 O-ring 13,25X2,5 1 17228511461
02 O-ring 13,4X1,78 1 17228573882
03 Torx bolt M6X20-ZNNIV SI 2 07129905568 $0.44
04 Clip nut M6-ZNS3 1 11427789289 $1.07
05 Heat exchanger 1 17217800408
06 Hex bolt with washer M6X16-U1-8.8 3 07119904524 $0.25
07 Bracket, oil cooler line 1 17227591463
08 Transmission oil cooler line 1 17228518984 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
