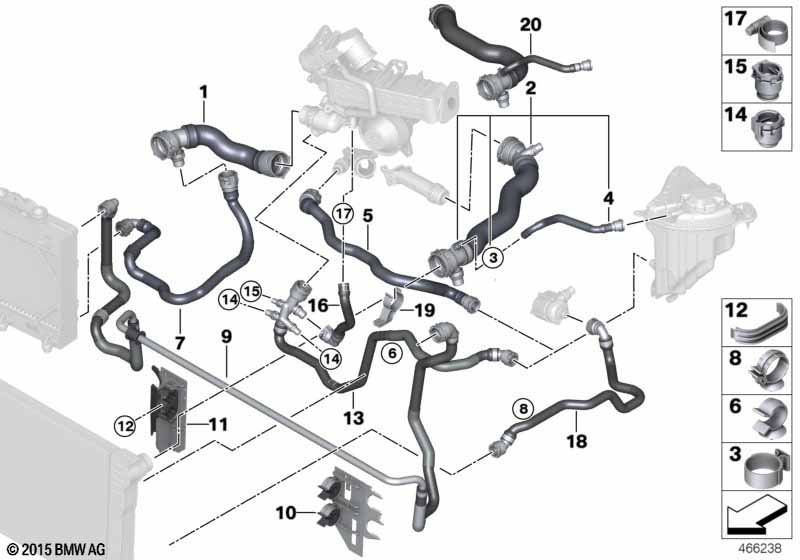

5' F07 GT LCI 530d Cooling system coolant hoses

Cooling system coolant hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Automatic transmission
and
Sport automatic transmission
and
Hot-climate version

S205A=No

S2TBA=No

S823A=Yes
01 Coolant hose 1 17127811983 +core
For vehicles with
BMW Diesel with Blue Performance

S163A=Yes
02 Coolant hose 1 17128511753
03 Hose clamp L12-14,5 1 32411712735 $0.62
04 Coolant hose 1 17127809816 +core
05 Coolant hose 1 17127805796 +core
05 Coolant hose 1 17127811984 +core
06 Tubing support D=17/D=19 2 13537792950 $1.08
07 Coolant hose 1 17127807033 +core
08 Hose clamp 2 17127807844 $1.22
09 Coolant hose 1 17128516689 +core
10 Clip LINKS 1 08/2011 17127613140
11 Clip RECHTS 1 17127613139
13 Coolant hose 1 17128511760
18 Coolant hose 1 17128511747
19 Clip 1 17127808130
20 Coolant hose 1 03/2012 17128513603 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
