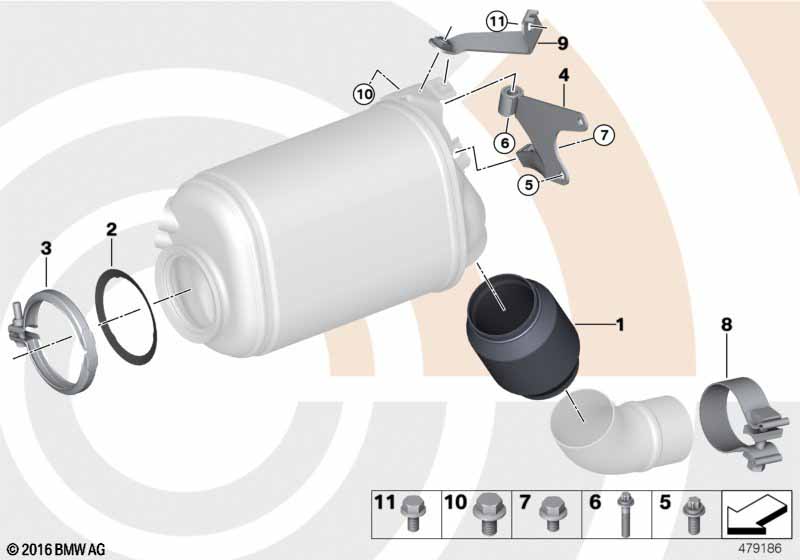

5' F07 GT LCI 530d Decoupling element

Decoupling element
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please observe Repair Manual.
01 Decoupling element VALUE LINE 1 18308517209
only applies to
-- AT-Diesel particulate filter EU6 X 18308513526
-- AT-Diesel particulate filter X 18308513527
-- AT-Diesel particulate filter EU6 X 18308513528 ENDED
-- AT-Diesel particulate filter EU6 X 18308513530 ENDED
-- AT-Diesel particulate filter EU6 X 18308514746
-- AT-Diesel particulate filter X 18308515094
-- AT-Diesel particulate filter EU5 X 18308517450
-- AT-Diesel particulate filter X 18308517451
-- AT-Diesel particulate filter EU6 X 18308518743
02 Gasket 1 18307803853
03 Screw clamp 1 11657620508
04 Holder catalytic converter near engine 1 18208515502
04 Holder catalytic converter near engine 1 18208515502
For vehicles with
EU3 exhaust emissions standard

S169A=Yes
04 Holder catalytic converter near engine 1 18207805775
04 Holder catalytic converter near engine 1 18207805775
05 ASA-Bolt M8X20-U1-8.8 1 07129904559 $0.71
05 ASA-Bolt M8X20-U1-8.8 1 07129904559 $0.71
06 Hex nut M8-ZNS3 1 07119904024 $0.20
06 Hex nut M8-ZNS3 1 07119904024 $0.20
06 Star-socket screw M8X16-8.8-ZNS3 2 07119907332
For vehicles with
EU3 exhaust emissions standard

S169A=Yes
06 ASA-Bolt M8X43 1 07129907370
06 ASA-Bolt M8X43 1 07129907370
07 Hex bolt M8X12-8.8-ZNS3 1 07119904134 $0.45
07 Hex bolt M8X12-8.8-ZNS3 1 07119904134 $0.45
08 Muffler clamp D=75,9MM 1 18307793766 $15.83
Notes
  • ENDED = the part has been discontinued (no longer available).
