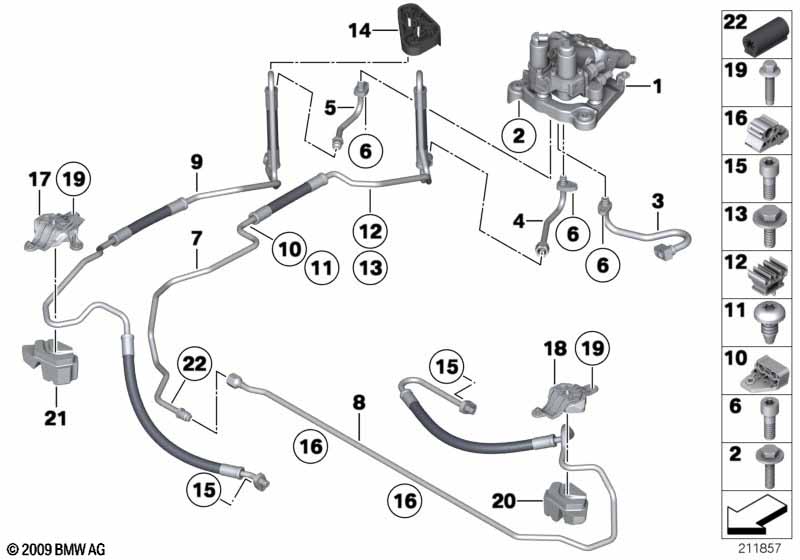

5' F07 GT LCI 530d Valve block + add-on parts/Dynamic Drive
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive or Chassis & suspens. setup"Adaptive Drive" |
S229A=Yes S2VAA=Yes |
|||||||
| 01 | Valve block | 1 | 37146775258 | $1071.83 | |||||
| 02 | Hex bolt with washer | M6X25-U2 | 3 | 07119905871 | $0.59 | ||||
| 03 | Pressure line, valve block | 1 | 37136775212 | $256.70 | |||||
| 04 | Pressure line, valve block | 1 | 37136775207 | ||||||
| 05 | Pressure line, valve block | 1 | 37136775208 | ||||||
| 06 | ISA screw | M8X22-ZNNIV SI | 5 | 07129905769 | $0.47 | ||||
| 07 | Pressure hose assy | 1 | 37136777216 | ||||||
| 08 | Pressure line, motor | 1 | 37136775164 | $228.75 | |||||
| 09 | Pressure line, motor | 1 | 37136775165 | ||||||
| 10 | Pipe support | 1 | 37136777225 | ||||||
| 11 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | |||||
| 12 | Pipe support | 1 | 37136777224 | ||||||
| 13 | Hex bolt | M6X18 ZNS3 | 1 | 07119905308 | $0.87 | ||||
| 14 | Damper rubber | 1 | 37136780520 | ||||||
| 15 | ISA screw | M8X20-8.8-ZNS3 | 2 | 07129904065 | $1.96 | ||||
| 16 | Pipe support | 2 | 37136777226 | ||||||
| 18 | Bracket upper section | 1 | 37106785436 | ||||||
| 19 | Screw self-tapping | M6X25- 10.9 ZNS | 4 | 34306771214 | $1.08 | ||||
| 20 | Bracket lower left | 1 | 37106785437 | ||||||
| 21 | Bracket lower right | 1 | 37106785438 | ||||||
