5' F07 GT LCI 530d Intake muffler/Filter cartridge/HFM

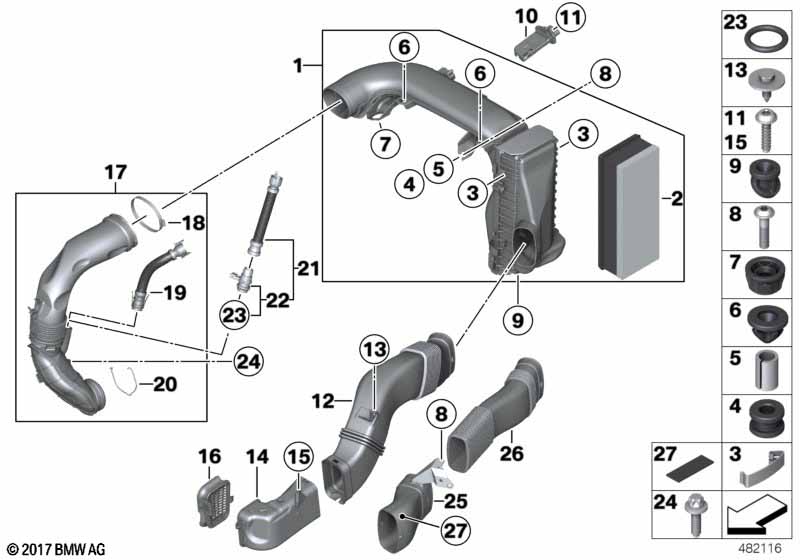

Intake muffler/Filter cartridge/HFM
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake muffler 1 07/2014 13718507565
01 Intake muffler 1 13718573869
02 Air filter element 1 13718518111
03 Spring clip L=42MM 2 13711716113 $1.16
04 Grommet 1 13717604012
05 Sleeve 1 13717604011
06 Rubber Mounting 2 13718519141
07 Rubber buffer 1 13717603399
08 Countersunk screw M6X25 1 34317680001 $5.65
09 Grommet 1 13718514992
10 Hot-film air mass meter 1 13627804150
11 Fillister head screw with collar M4X14 2 46637659479 $1.20
12 Intake duct 1 13718513454
13 Hex bolt TS5X20 SW8 D=16 1 07147148437 $0.44
14 Air channel 5-8 1 09/2015 13717577471 $17.43
14 Air channel 1 09/2015 13718591020
15 Screw 5X20 1 11617535849 $0.75
16 Intake manifold 1 13717800154
17 Filtered air pipe 1 13718513459
18 Hose clamp L95-102 1 07129952137 $1.52
19 Pipe 1 13717803842
20 Spring clip 1 17517802664 $2.88
24 Torx bolt BM6X20-8.8-ZNS3 1 07119907243
