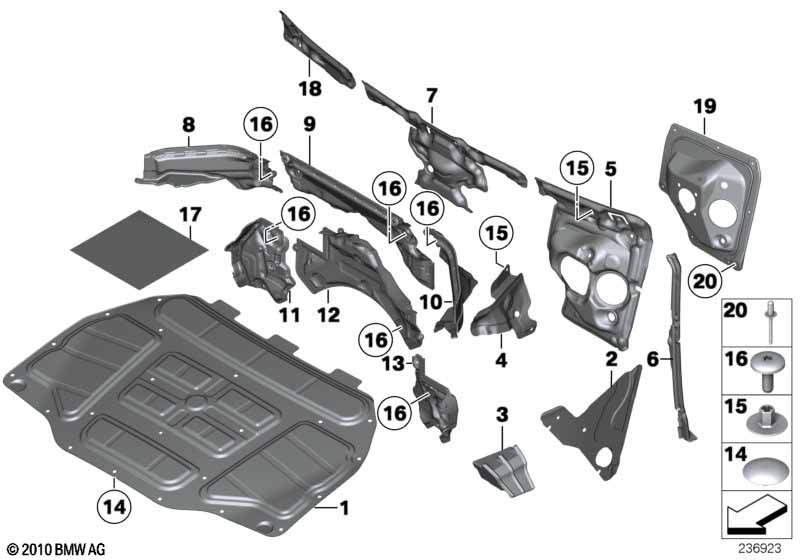

5' F07 GT LCI 530d Noise insulation, front I
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 06 | Seal, side frame, left | 1 | 51489134503 | ||||||
| 06 | Seal, side frame, right | 1 | 51489134504 | ||||||
| 07 | Sound insulating dash panel engine room | 1 | 51489138479 | ||||||
| 08 | Noise insulation, firewall, upper right | 1 | 51717149460 | ||||||
| 09 | Sound insulat., splash wall, upper part | 1 | 51717149461 | ||||||
| 10 | Noise insulation, firewall, upper left | 1 | 51717149459 | ||||||
| 11 | Noise insulation, firewall, lower right | 1 | 51717211900 | ||||||
| 12 | Sound insulat., bottom sect. of bulkhead | 1 | 51717188421 | ||||||
| 13 | Noise insulation, firewall, lower left | 1 | 51717211899 | ||||||
| 14 | Clip | X | 51489119216 | $0.37 | |||||
| 15 | Clip nut | 5X15 D=30 SW10 | X | 07147139081 | $0.20 | ||||
| 16 | Oval-head machine screw, self-locking | M6X18MM ISA | X | 07149188001 | |||||
| 17 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | ||||
| 18 | Sound insulat.dash panel engine room R. | 1 | 51489138478 | ||||||
| 19 | Cover plate, firewall | 1 | 51717184113 | ||||||
| 20 | Blind rivet | 7 | 07149191219 |
