5' F07 GT LCI 530d Air ducts

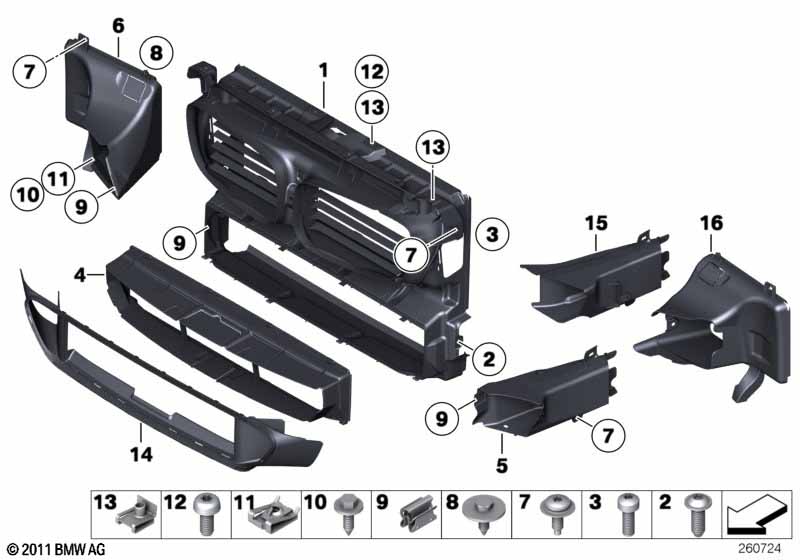

Air ducts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air duct 1 51747200765 $80.57
For vehicles with
Night Vision with human recognition

S6UKA=Yes
01 Air duct 1 51747224661
For vehicles with
CO2 package
and
Night Vision with human recognition

S1CBA=Yes

S6UKA=No
01 Air duct 1 51747200771
02 Fillister head screw PT6X18 2 07146959826 $0.62
03 Torx-bolt with washer ISA M6X16 2 07147145088 $0.53
04 Air duct front bottom 1 51647331789
For vehicles with
M Aerodynamics package

S715A=Yes
04 Air duct, bottom M 1 51648049649
05 Front left brake air duct BASIS 1 51747331791
05 Front right brake air duct BASIS 1 51747331792
06 Air duct, right 1 51747200774 $19.22
07 Oval-head screw with washer 2 07147212669 $1.16
08 Hex bolt TS5X17 SW8 D=22 2 07149126886
09 Clamp 1 51747229594
10 Sheet metal screw with washer ST 4,8X19 2 07119904263 $0.29
11 C-clip nut 2 51717065773
12 Screw 2 07119906151
13 C-clip nut, self-locking M6-ZNS3 6 07147286036
For vehicles with
M Aerodynamics package

S715A=Yes
15 Air duct, brake, left M 1 51748049675
15 Air duct, brake, right M 1 51748049676
16 Air duct, exterior radiator, left 1 51747331793
16 Air duct, exterior radiator, right 1 51747331794
For vehicles with
M Aerodynamics package

S715A=Yes
16 Air duct, exterior radiator, left M 1 51748051235
For vehicles with
M Aerodynamics package
and
Hot-climate version

S715A=Yes

S823A=Yes
16 Air duct, exterior radiator, left M 1 51748051235
