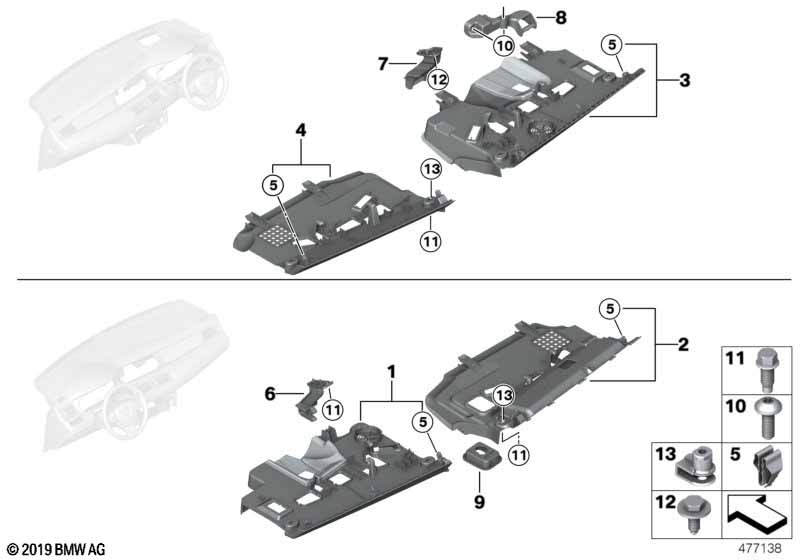

5' F07 GT LCI 530d Mounting parts, I-panel, bottom
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Veneto-beige or Veneto beige exclusive seam |
DF=Yes LY=Yes |
||||||||
| 03 | Driver's footwell trim panel | VENETOBEIGE | 1 | 51459199155 | +core | ||||
| For vehicles with elfenbein-weiss Exclusive seam or elfenbein-weiss Exclusive seam or elfenbein-weiss/oyster Exclusive seam |
EH=Yes EL=Yes ET=Yes |
||||||||
| 03 | Driver's footwell trim panel | ELFENBEINWEISS | 1 | 51459199156 | +core | ||||
| For vehicles with anthracite or zimt-braun or Black Exclusive seam or Mocha or Black Exclusive seam or Black |
AT=Yes EZ=Yes LZ=Yes MW=Yes SJ=Yes SW=Yes |
||||||||
| 03 | Driver's footwell trim panel | SCHWARZ | 1 | 51459199158 | +core | ||||
| For vehicles with Veneto-beige or Veneto beige exclusive seam |
DF=Yes LY=Yes |
||||||||
| 04 | Passenger's footwell trim panel | VENETOBEIGE | 1 | 51459199150 | +core | ||||
| For vehicles with elfenbein-weiss Exclusive seam or elfenbein-weiss Exclusive seam or elfenbein-weiss/oyster Exclusive seam |
EH=Yes EL=Yes ET=Yes |
||||||||
| 04 | Passenger's footwell trim panel | ELFENBEINWEISS | 1 | 51459199151 | +core | ||||
| For vehicles with anthracite or zimt-braun or Black Exclusive seam or Mocha or Black Exclusive seam or Black |
AT=Yes EZ=Yes LZ=Yes MW=Yes SJ=Yes SW=Yes |
||||||||
| 04 | Passenger's footwell trim panel | SCHWARZ | 1 | 51459199153 | +core | ||||
| 05 | Clamp | 4 | 07/2011 | 51167151389 | $1.10 | ENDED | |||
| 05 | Clamp | 4 | 07147321144 | ||||||
| 07 | Bracket, trim, footwell on driver's side | 1 | 51459170418 | ||||||
| 08 | Bracket, trim, footwell on driver's side | 1 | 51459170419 | ||||||
| 10 | Fillister head self-tapping screw | 5X14 | 2 | 07146973628 | |||||
| 11 | Oval-head screw with washer | DELTA PT4X20 | 4 | 07149185673 | |||||
| 12 | Hex bolt with washer | M6X18-U2-ZNS3 | 1 | 07119902933 | |||||
| 13 | C-clip for plastic nut | X | 07149200938 | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
