5' F07 GT LCI 530d Underbody cover, front

Underbody cover, front

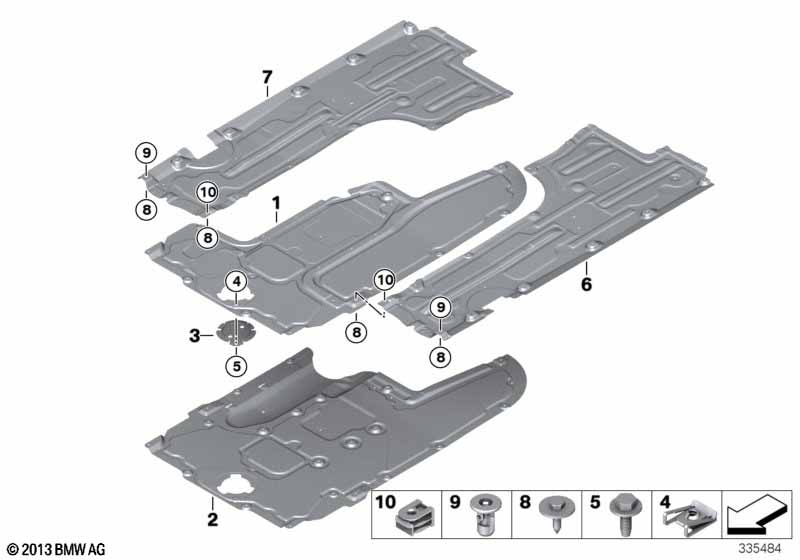

No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Trailer coupling
or
Hot-climate version

S3ACA=Yes

S823A=Yes
01 Underfloor coating center 1 51757207147
For vehicles with
Trailer coupling
or
Hot-climate version

S3ACA=No

S823A=No
02 Underfloor coating center 1 51757193220
03 Underfloor coating cover 1 51757209541
04 C-clip nut, self-locking ST 4.8 -ZNS3 X 07147154447 $0.27
05 Sheet metal screw ST4,8X13-F-ZNS3 X 07119901291 $0.38
06 Lateral underbody shield, left 1 51757193497
07 Lateral underbody shield, right 1 51757193498
08 Hex bolt TS5X20 SW8 D=22 X 07149213164 $0.38
09 Expanding nut L=18.4, DMAX=18 X 07147201307 $0.25
10 C-clip for plastic nut TS5 X 07147311312
