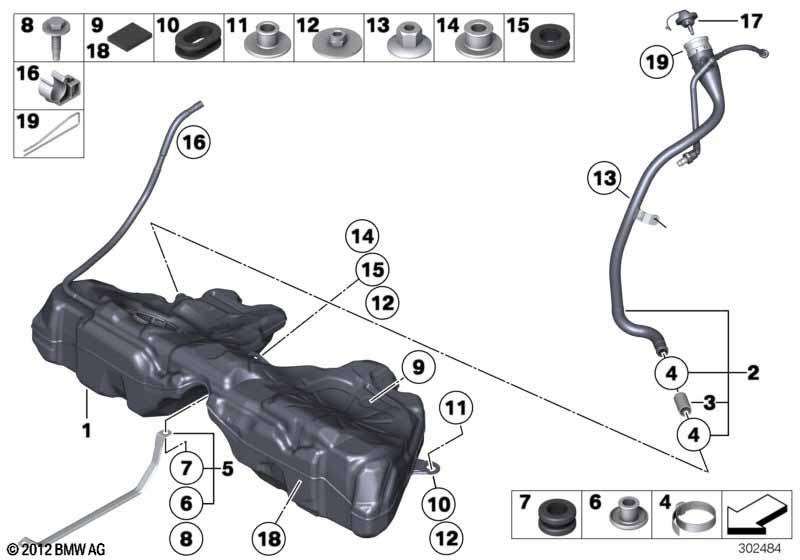

5' F07 GT LCI 530dX Fuel tank/mounting parts

Sponsored links

No.	Description	Supp.	Qty	Up To	Part Number	Price
01	Plastic fuel tank		1		16117268032
02	Plastic filler pipe		1		16117217084
03	Filler pipe		1		16117205699
04	Hose clamp	L37-43	2		07129952117	$1.09
05	Tension strap		2		16117053972
06	Spacer sleeve		4		16117194458	$3.23
07	Rubber grommet		4		16111182454	$0.93
08	Hex bolt	M8X30-PF-U2-8.8	4		07119906672
09	Base	35X45 MM	4		16111182585	$1.08
09	Base	45X36X12 MM	4		16117305657
10	Rubber grommet, slot		2		16111184870	$7.10
11	Spacer bush		2		16117293529
12	Hex nut	M8-8-ZNS3	3	03/2015	07146760121	$1.09
12	Hex nut with plate	M8-8.8-ZNS3	3		07147204294
13	Plastic nut for coarse threaded pin		1		16131183133	$0.37
14	Spacer bushing, slot		1		16117293528
15	Rubber grommet		1		16111182609	$1.13
16	Cable clip	D18	1		16131183931	$1.08
17	Filler cap		1		16117482901
18	Base	45X36X6 MM	2		16117305656
	For vehicles with National version japan	L807A=Yes
19	Clamp		1		16117324543
