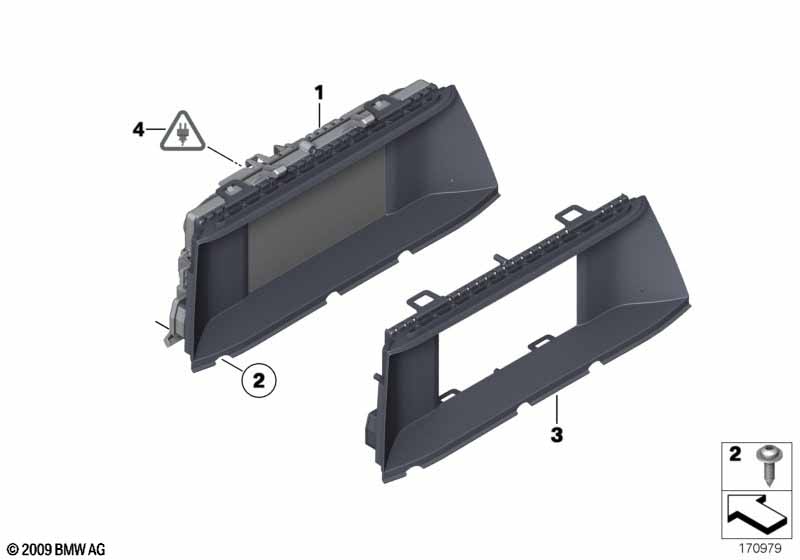

5' F07 GT LCI 530dX Central information display
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with TV function and Navigation system Professional |
S601A=No S609A=No |
||||||||
| 01 | Central information display | 6,5" | 1 | 07/2012 | 65509284971 | ||||
| For vehicles with TV function and Navigation system Professional and CIC-Zusteuerung |
S601A=Yes S609A=Yes S6VAA=No |
||||||||
| 01 | Central information display | 10,25" | 1 | 07/2012 | 07/2014 | 65509284972 | ENDED | ||
| 01 | Central information display | 10,25" | 1 | 07/2014 | 65509321015 | ||||
| For vehicles with TV function and Navigation system Professional and CIC-Zusteuerung |
S601A=Yes S609A=No S6VAA=No |
||||||||
| 01 | Central information display | 10,25" | 1 | 07/2012 | 07/2014 | 65509284972 | ENDED | ||
| 01 | Central information display | 10,25" | 1 | 07/2014 | 65509321015 | ||||
| For vehicles with TV function and Navigation system Professional and CIC-Zusteuerung |
S601A=No S609A=Yes S6VAA=No |
||||||||
| 01 | Central information display | 10,25" | 1 | 07/2012 | 07/2014 | 65509284972 | ENDED | ||
| 01 | Central information display | 10,25" | 1 | 07/2014 | 65509321015 | ||||
| 02 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 2 | 07148263913 | $0.18 | ||||
| For vehicles with TV function and Navigation system Professional |
S601A=No S609A=No |
||||||||
| 03 | Cover | 6,5" | 1 | 07/2012 | 65509291242 | ||||
| For vehicles with TV function and Navigation system Professional and CIC-Zusteuerung |
S601A=Yes S609A=Yes S6VAA=Yes |
||||||||
| 03 | Cover | 10,25" | 1 | 07/2012 | 65509205065 | ||||
| For vehicles with TV function and Navigation system Professional and CIC-Zusteuerung |
S601A=Yes S609A=No S6VAA=Yes |
||||||||
| 03 | Cover | 10,25" | 1 | 07/2012 | 65509205065 | ||||
| For vehicles with TV function and Navigation system Professional and CIC-Zusteuerung |
S601A=No S609A=Yes S6VAA=Yes |
||||||||
| 03 | Cover | 10,25" | 1 | 07/2012 | 65509205065 | ||||
| 04 | Universal socket housing uncoded | 8 POL. | 1 | 07/2012 | 61136954526 | $3.12 | |||
| only in conjunction with | |||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 1 | 07/2012 | 61131393704 | $0.23 | |||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 1 | 07/2012 | 61136931880 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
