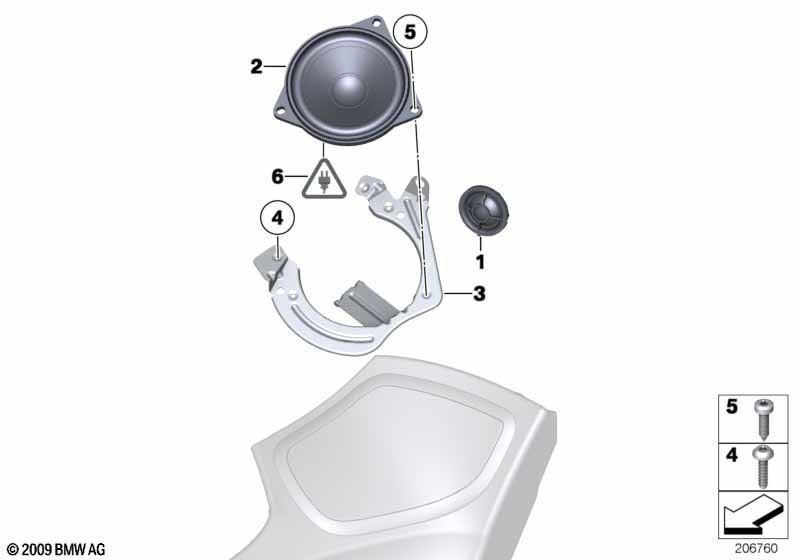

5' F07 GT LCI 530dX Single parts, Top Hifi system, C-pillar
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
||||||||
| 01 | Tweeter | TOP-HIFI-SYSTEM | 2 | 07/2013 | 65139220751 | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
||||||||
| 01 | Tweeter | TOP-HIFI-SYSTEM | 2 | 07/2013 | 65139220751 | ||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
||||||||
| 02 | Top-hifi MID-range loudspeaker | 2 | 07/2013 | 65139141501 | $86.73 | ||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
||||||||
| 02 | Top-hifi MID-range loudspeaker | 2 | 07/2013 | 65139141501 | $86.73 | ||||
| 03 | Holder | LINKS | 1 | 07/2013 | 65139283415 | ||||
| 03 | Holder | RECHTS | 1 | 07/2013 | 65139283416 | ||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
||||||||
| 04 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 6 | 51419143799 | $0.22 | ||||
| 05 | Sheet-metal screw, black | ST4,8X19 | 6 | 07119905746 | $3.73 | ||||
| 06 | Universal socket housing uncoded | 2 POL. | 2 | 09/2014 | 61136925634 | $1.65 | |||
| only in conjunction with | |||||||||
| -- | Pin contact MQS with cable | 0,2- 0,5QMM | X | 09/2014 | 61130005198 | $1.82 | |||
| -- | Pin contact MQS with cable | 0,75QMM | X | 09/2014 | 61130006664 | $1.88 | |||
| 06 | Rep. kit for socket housing | 2 POL. | 2 | 61132360043 | |||||
| only in conjunction with | |||||||||
| -- | Pin contact MQS with cable | 0,2- 0,5QMM | X | 61130005198 | $1.82 | ||||
| -- | Pin contact MQS with cable | 0,75QMM | X | 61130006664 | $1.88 | ||||
