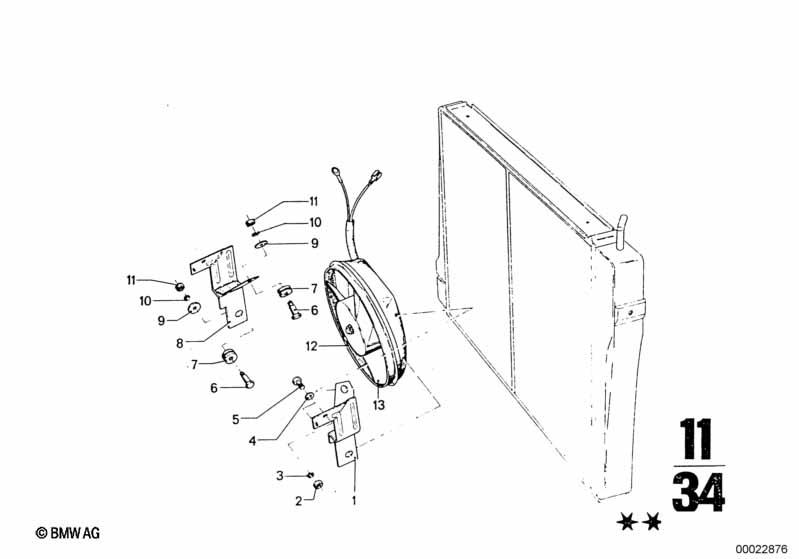

2500-3.3Li 2500 Additional fan

Additional fan
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Bracket left 1 08/1968 02/1977 17411354807 ENDED
For vehicles with
Air conditioning

=Yes
01 Bracket left 1 08/1968 02/1977 17411354481 ENDED
02 Hex nut M6-8-ZNS 4 07119922832 $0.37 ENDED
02 Hex nut M6-8-ZNNIV SI 4 07119905543 $0.38
03 Spring washer B6 4 07119933082 $0.09
04 Washer A6,4-ZNNIV SI 8 07119904202
05 Hex bolt M6X16-8.8-ZNS3 4 07119904357 $0.36
06 Fit bolt M5 4 17401354522 $1.17
07 Rubber grommet 4 17401354524 $0.70
For vehicles with
Air conditioning

=Yes
08 Bracket right 1 08/1968 02/1977 17411354482 ENDED
09 Washer 4 17401354523 $0.63
10 Spring washer B5 4 07119933060 $0.11
11 Hex nut M5 4 07119922038 $0.09
12 Blower unit 1 08/1968 02/1977 17411357252 $447.52 ENDED
13 Fan wheel 1 17411360909 $55.74 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
