2500-3.3Li 2500 Carburetor cap/piston/float

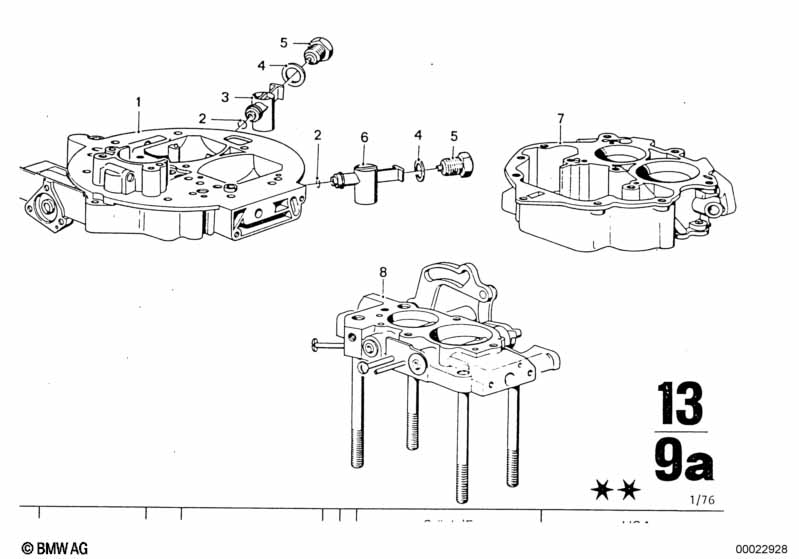

Carburetor cap/piston/float
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Carburator frame 1 09/1973 02/1977 13111263695 ENDED
01 Carburator frame 1 09/1973 02/1977 13111263704 ENDED
02 O-ring 4 13111255585 ENDED
03 Pre-atomizer 2 13111260433 $18.08 ENDED
04 Gasket ring 4 13111250721 ENDED
05 Screw 4 13111253065 ENDED
06 Pre-atomizer 2 13111260433 $18.08 ENDED
07 Float chamber 2 09/1973 02/1977 13111260428 ENDED
For vehicles with
National version sweden

=Yes
07 Float chamber 1 09/1973 02/1977 13111264378 ENDED
08 Throttle housing 1 09/1973 02/1977 13111263685 ENDED
08 Throttle housing 1 09/1973 02/1977 13111263703 ENDED
For vehicles with
National version sweden

=Yes
08 Throttle housing 1 09/1973 02/1977 13111264373 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
