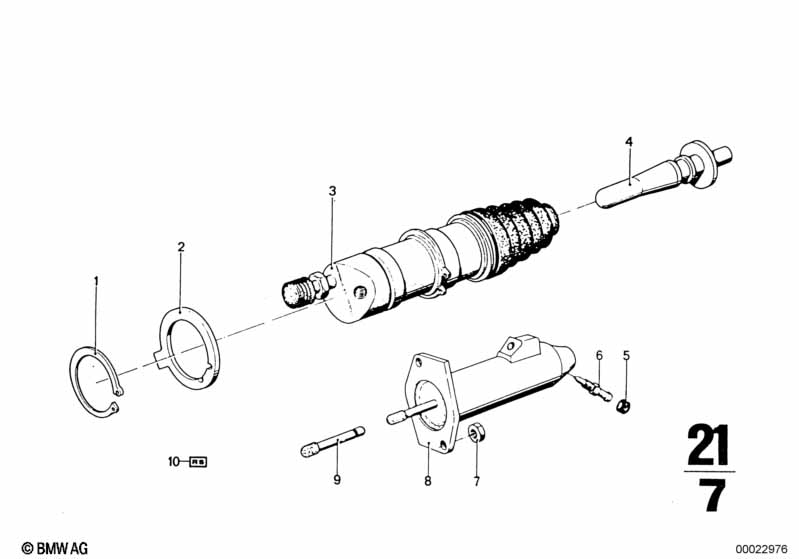

2500-3.3Li 2500 Clutch slave cylinder
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap ring | RW30X1,5 | 2 | 08/1968 | 02/1977 | 07119934202 | ENDED | ||
| 02 | Bracket | 1 | 08/1968 | 02/1977 | 21521102748 | ENDED | |||
| 03 | Clutch slave cylinder | D=22,20MM | 1 | 08/1968 | 02/1977 | 21521102060 | $301.41 | ||
| 04 | Rod | 1 | 08/1968 | 02/1977 | 21521102079 | $53.87 | |||
| 05 | Dust cap | 1 | 34111153198 | $6.15 | |||||
| 06 | Ventilation valve | 1 | 34219023168 | $8.13 | |||||
| 07 | Self-locking hex nut | M8 | 2 | 09/1973 | 02/1977 | 07129922714 | $0.17 | ENDED | |
| 07 | Self-locking hex nut | M8 | 2 | 09/1973 | 02/1977 | 07129946400 | $0.35 | ENDED | |
| 07 | Self-locking hex nut | M8-8-ZNNIV SI | 2 | 09/1973 | 02/1977 | 07129905767 | $0.27 | ENDED | |
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 09/1973 | 02/1977 | 07129906196 | $1.60 | ||
| 08 | Clutch slave cylinder | D=22,20MM | 1 | 09/1973 | 02/1977 | 21521114536 | $137.83 | +core | |
| 09 | Thrust adapter | ATE | 1 | 09/1973 | 02/1977 | 21521113878 | $5.32 | ENDED | |
| 09 | Thrust adapter | FAG | 1 | 09/1973 | 02/1977 | 21521116359 | $18.40 | ||
| 10 | Repair kit output cylinder clutch | 1 | 08/1968 | 02/1977 | 21521103191 | $147.05 | ENDED | ||
| 10 | Repair kit output cylinder clutch | ATE | 1 | 09/1973 | 02/1977 | 21521113880 | $18.02 | ENDED |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
