2500-3.3Li 2500 ZF s5-16 gear wheel set,single parts

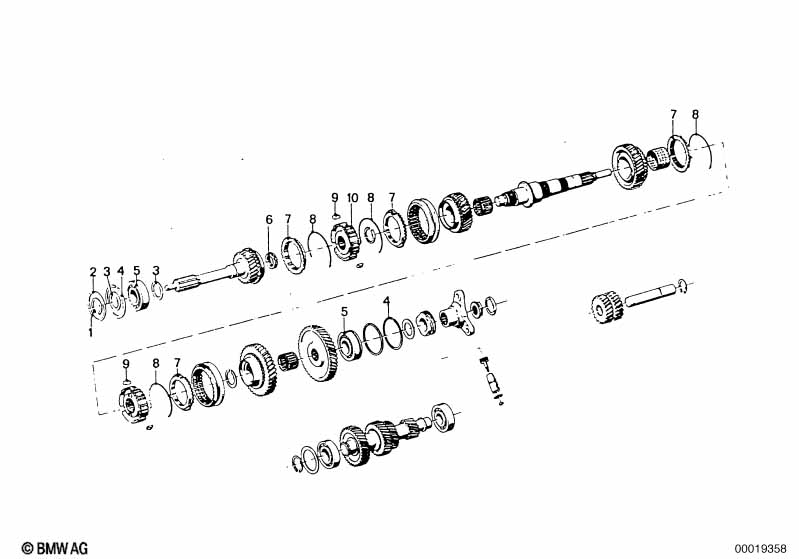

ZF s5-16 gear wheel set,single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lock Ring 30X2 1 07119934201 $2.18
according to choice
02 Washer 1 23121201281 ENDED
02 Washer 1 23121201282 ENDED
02 Washer 1 23121201283 ENDED
02 Washer 1 23121201285 ENDED
02 Washer 1 23121201286 ENDED
02 Washer 1 23121201287 ENDED
03 Washer 2 23121201265 ENDED
03 Washer 2 23121201266 ENDED
03 Washer 2 23121201267 ENDED
03 Washer 2 23121201268 ENDED
03 Washer 2 23121201269 ENDED
03 Washer 2 23121201270 ENDED
03 Washer 2 23121201271 ENDED
03 Washer 2 23121201272 ENDED
03 Washer 2 23121201273 ENDED
03 Washer 2 23121201274 ENDED
03 Washer 2 23121201275 ENDED
04 Snap ring SP72 2 07119933305 ENDED
05 Ball bearing 72X30X19 2 23121204580 $41.57 ENDED
05 Ball bearing 72X30X19 2 23121205197
06 Needle cage 35X29X15 1 23221201276 $32.85 ENDED
07 Synchronizer ring 4 23231224594 $73.63
08 Synchroniser spring 4 23231202841 $5.35 ENDED
09 Thrust adapter 6 23231207187 ENDED
10 Guide sleeve 1 23231201302 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
