2500-3.3Li 2500 Getrag 262 gear wheel set,single parts

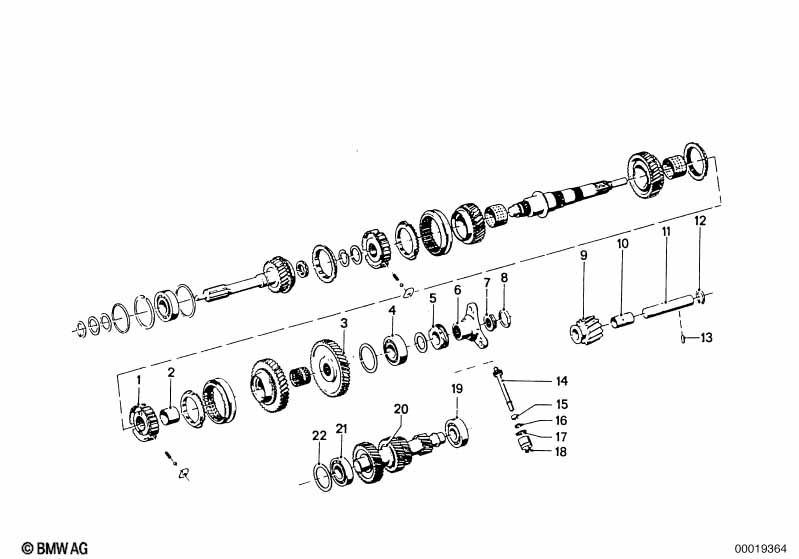

Getrag 262 gear wheel set,single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Guide sleeve 1st and 2nd gear 1 23231228478 $338.15 ENDED
03 Reverse gear wheel Z=39 1 23221202744 $182.77
04 Ball bearing 72X30X19 1 23121205522 $16.46
05 Speedometer drive 1 23221490119 $135.09
06 Output flange D=12MM 1 23211203061 $116.85
06 Output flange D=10MM 1 08/1968 02/1977 23211202746 $14.39 ENDED
07 Collar nut M20X1,5 1 33121200258 $8.56
08 Securing plate 1 23211490120 $1.43
09 Reverse gear with bush 1 23221202733 ENDED
10 Bush 1 23221202731 $13.50 ENDED
11 Shaft 1 23211202745 $16.41 ENDED
12 Lock Ring 23X1,2 1 07119934156 ENDED
13 Roll pin 6X12 1 07119941123 ENDED
14 Speedometer drive 1 23221200416 $105.44
15 Bush 1 23121630176 $1.21
16 Shaft seal 8X14X6 1 23121490192 $14.05
17 O-ring 19,5X25,5X3 1 23211202752 $2.27 ENDED
17 O-ring 19,5X3 1 11431740045 $1.81
18 Adaptor 1 23211202751 $88.92
19 Grooved ball bearing 66X28X18 1 23121202732 $24.37
20 Lock Ring 42X1,75 1 07119934230 ENDED
21 Grooved ball bearing 25X62X17 1 07119981432 $26.75
22 Shim 50X62X0,3 X 23121200409 $1.82
Notes
  • ENDED = the part has been discontinued (no longer available).
