2500-3.3Li 2500 ZF s5-16 housing+attaching parts

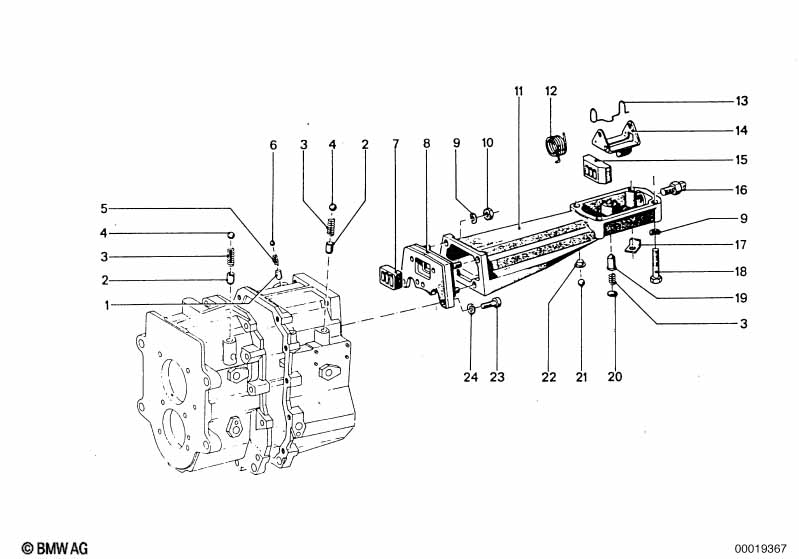

ZF s5-16 housing+attaching parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Insert 1 23311201358 ENDED
02 Pin 2 23311201356 ENDED
03 Compression spring 3 23311201357 ENDED
04 Ball 3/8"ZOLL 2 07119986299 ENDED
05 Compression spring 1 23311201359 ENDED
07 Guide ZF 1 23311201370 ENDED
08 Vibration damper 1 23311205082 ENDED
09 Wave washer B8 8 02/1977 07119932095 $0.09 ENDED
09 Wave washer 8 07119904115 $0.09
10 Hex nut M8-8-ZNNIV SI 4 07119905515 $0.16
11 Shifting arm 1 23111201367 $123.88 ENDED
12 Spring 1 23311201383 ENDED
13 Spring 1 23311201384 $2.32
14 Bow 1 23311201380 ENDED
15 Guide ZF 1 23311201371 ENDED
16 Switch, reversing light and idle gear M12X1,5 1 23141352153 $13.53
17 Bracket 2 61131200462 ENDED
18 Hex bolt M8X45-8.8-ZNS3 8 07119902955 $0.62
19 Pin 1 23311201369 ENDED
20 Cover lid D=16MM 1 07119932412 $0.37
21 Ball 13/32" 1 07119986405 ENDED
22 Blind plug 1 23111201372 ENDED
23 Fillister-head screw M8X20-8.8 ZN 5 07119919969 $0.78
24 Spring washer B8 5 07119933096 $0.18
Notes
  • ENDED = the part has been discontinued (no longer available).
