2500-3.3Li 2500 Getrag 262 inner gear shifting parts

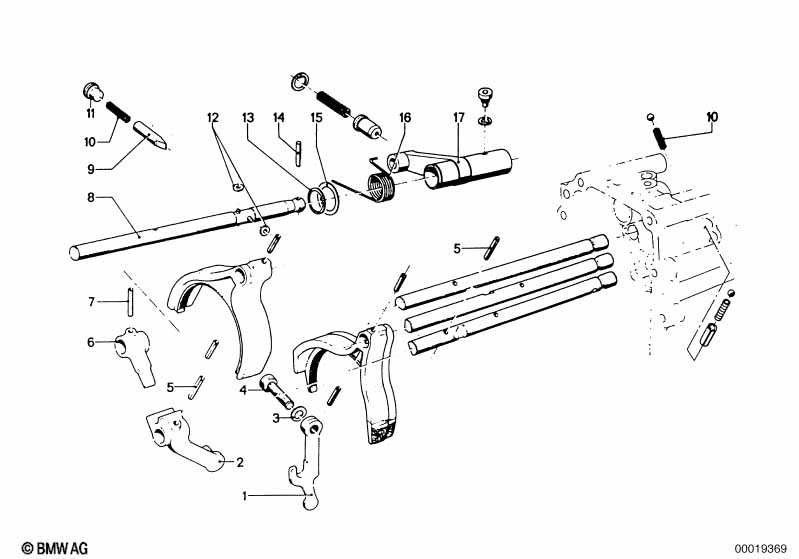

Getrag 262 inner gear shifting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shift lever 1 23311202755 $47.99
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
02 Driving dog 1 23311202754 ENDED
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
03 Wave washer B10 1 07119932114 ENDED
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
04 Hex bolt M10X1X35 1 07119911636 ENDED
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
05 Set anti rattle pin 10 6X28 2 07509064307 ENDED
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
06 Shift 1 23311202761 $64.93 ENDED
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
07 Roll pin 6X28 1 07119941270 $0.95 ENDED
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
08 Selector shaft 1 23319058951 $267.84 ENDED
only in conjunction with
-- Locking pin X 23311205113 $25.45
-- Compression spring D=1,4 X 23311228153 $1.65
09 Locking pin 1 23311205113 $25.45
09 Locking pin 1 08/1968 02/1977 23311202763 ENDED
10 Compression spring D=1,4 2 23311228153 $1.65
10 Compression spring D=1,3MM 2 08/1968 02/1977 23111666227 $1.83
11 Blind plug 1 23311202762 $5.70 ENDED
11 Blind plug 1 23317545771 $6.03
12 Roll pin 4 23311224395 $9.24 ENDED
12 Roll pin 4 23317539086 $10.41
13 Lock Ring 1 23311202768 $2.30 ENDED
14 Dowel pin 1 23411466134 $0.70
15 Shim 32X26X1,0 1 23311202769 $1.61 ENDED
16 Retainer spring 1 23311202767 $2.44 ENDED
17 Selector cam 1 23311202766 $213.16 ENDED
17 Selector cam 1 23311224054 $213.16 ENDED
only in conjunction with
-- Shifting rod 1.and 2.gear 1 23311220308 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
