2500-3.3Li 2500 Front axle support

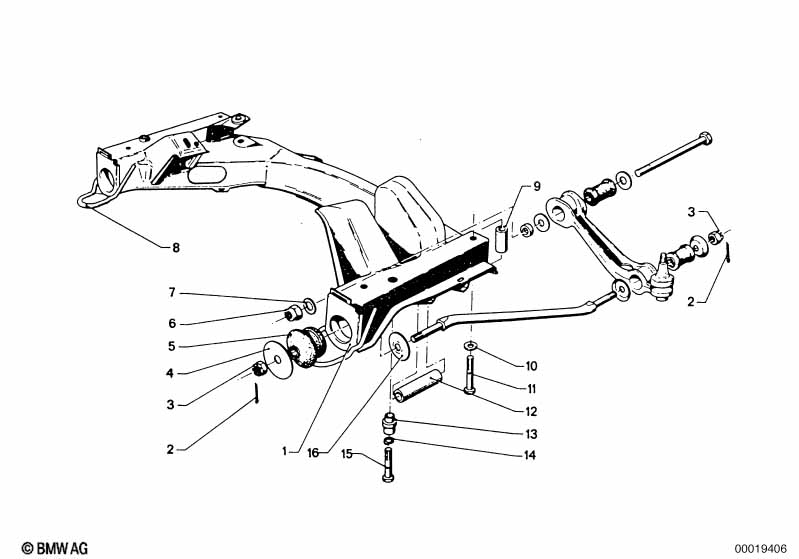

Front axle support
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front axle support 1 08/1968 02/1977 31111110149 $521.21 ENDED
02 Split pin 3,2X25 4 08/1968 02/1977 07119945196 $0.09 ENDED
03 Crown nut M14X1,5 4 08/1968 02/1977 07119923457 $7.53
only in conjunction with
-- Tension strut 4 08/1968 02/1977 31121101969 ENDED
03 Self-locking hex nut M14X1,5 4 08/1968 02/1977 07129922470 ENDED
only in conjunction with
03 Self-locking hex nut M14X1,5 ZNFE 4 08/1968 02/1977 31121095420 $0.88 ENDED
only in conjunction with
03 Self-locking hex nut M14X1,5-05 ZNS3 4 08/1968 02/1977 31106774714 $1.12
only in conjunction with
-- Tension strut 4 08/1968 02/1977 31121101969 ENDED
04 Washer 2 31121108294 $5.53 ENDED
only in conjunction with
-- Tension strut 2 31121101969 ENDED
05 Set rubber mounting 2 02/1977 31121123552 $50.70
only in conjunction with
-- Tension strut 2 02/1977 31121101969 ENDED
05 Repair kit rubber mounting 2 31121123553
only in conjunction with
-- Tension strut 2 31121101969 ENDED
06 Self-locking hex nut M16X1,5 2 07129922754 $1.09
only in conjunction with
-- Tension strut 2 31121101969 ENDED
07 Washer 2 31112614113 $1.02
only in conjunction with
-- Tension strut 2 31121101969 ENDED
08 Towing bracket 2 31111102698 ENDED
only in conjunction with
-- Tension strut 2 31121101969 ENDED
10 Washer 12,4X25X3MM 2 02/1977 31111113513 $0.67 ENDED
only in conjunction with
-- Tension strut 2 02/1977 31121101969 ENDED
10 Washer 12-300 HV-ZNS3 2 07119904119 $0.25
only in conjunction with
-- Tension strut 2 31121101969 ENDED
11 Set bolt 5 M12X1,5X70 2 07509063228 ENDED
only in conjunction with
-- Tension strut 2 31121101969 ENDED
12 Pipe 2 31121101937 ENDED
only in conjunction with
-- Tension strut 2 31121101969 ENDED
13 Spacer 2 08/1968 02/1977 31111101228 ENDED
only in conjunction with
-- Tension strut 2 08/1968 02/1977 31121101969 ENDED
14 Spring washer B12 2 07119933127 $0.13
only in conjunction with
-- Tension strut 2 31121101969 ENDED
15 Hex bolt M12X1,5X60 2 07119914643 $2.68
only in conjunction with
-- Tension strut 2 31121101969 ENDED
16 Washer 2 31121100626 $1.40 ENDED
only in conjunction with
-- Tension strut 2 31121101969 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
