2500-3.3Li 2500 Hydro steering box

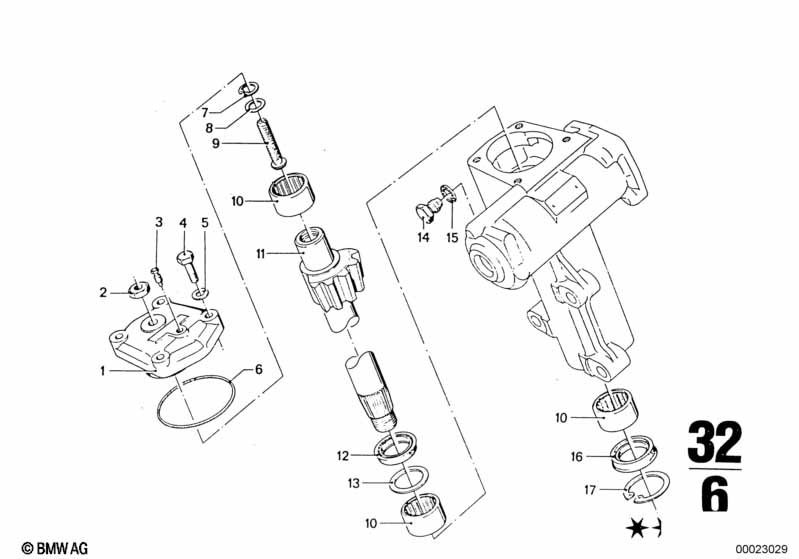

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Power steering

=Yes
01 Housing cover 1 32131104784 ENDED
02 Collar nut 1 32131130398 $3.08
03 Screw 1 32131104787 $4.08 ENDED
04 Hex bolt M8X22 4 07119913649
05 Washer 4 32131104786 ENDED
06 O-ring 1 32131104785 $2.82 ENDED
07 Lock Ring 1 32112670140 ENDED
08 Shim 2,150MM 1 32131104870 ENDED
08 Shim 2,200MM 1 32131104871 ENDED
08 Shim 2,250MM 1 32131104872 ENDED
08 Shim 2,300MM 1 32131104873 ENDED
08 Shim 2,350MM 1 32131104874 ENDED
08 Shim 2,400MM 1 32131104875 ENDED
08 Shim 2,450MM 1 32131104876 ENDED
09 Screw 1 32131112357 $5.08 ENDED
10 Needle sleeve 28,0X35,0X20,0 3 32131111870 ENDED
11 Segment shaft 1 32131111915 ENDED
12 Gasket ring 1 32131104783 ENDED
13 Washer 1 32131104782 ENDED
14 Screw plug AM12X1,5 1 07119919225 $0.85
15 Gasket ring A12X15-CU 1 07119963129 $0.11
16 Shaft seal 1 32131111871 $15.79
17 Lock Ring 40X1,75 1 07119934700 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
