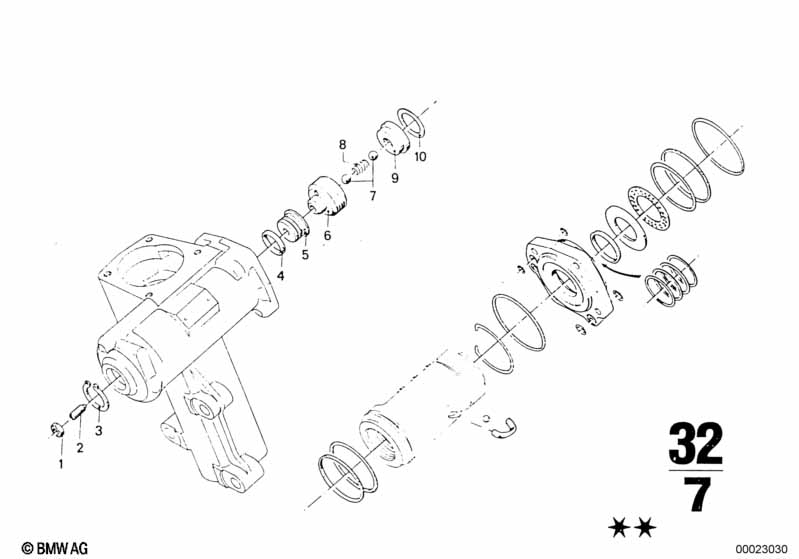

2500-3.3Li 2500 Hydro steering box

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Power steering

=Yes
01 Hex nut 1 32131106920 ENDED
02 Grub screw M6X16 1 07119904020 ENDED
03 Lock Ring 24X1,2 1 07119934160 $0.20
04 O-ring 1 32131106262 ENDED
05 Plug 1 32131106742 ENDED
06 Valve washer 1 32131106265 ENDED
07 Ball 9MM III 2 07119986298 $0.59
08 Compression spring 1 32131106276 ENDED
09 Valve washer 1 32131104821 ENDED
10 Shim 1,000MM 1 32131106898 ENDED
10 Shim 1,100MM 1 32131106899 ENDED
10 Shim 1,200MM 1 32131106900 ENDED
10 Shim 1,300MM 1 32131106901 ENDED
10 Shim 1,400MM 1 32131106902 ENDED
10 Shim 1,500MM 1 32131106903 ENDED
10 Shim 1,600MM 1 32131106904 ENDED
10 Shim 1,700MM 1 32131106905 ENDED
10 Shim 1,800MM 1 32131106906 ENDED
10 Shim 1,900MM 1 32131106907 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
