2500-3.3Li 2500 Hydro steering box

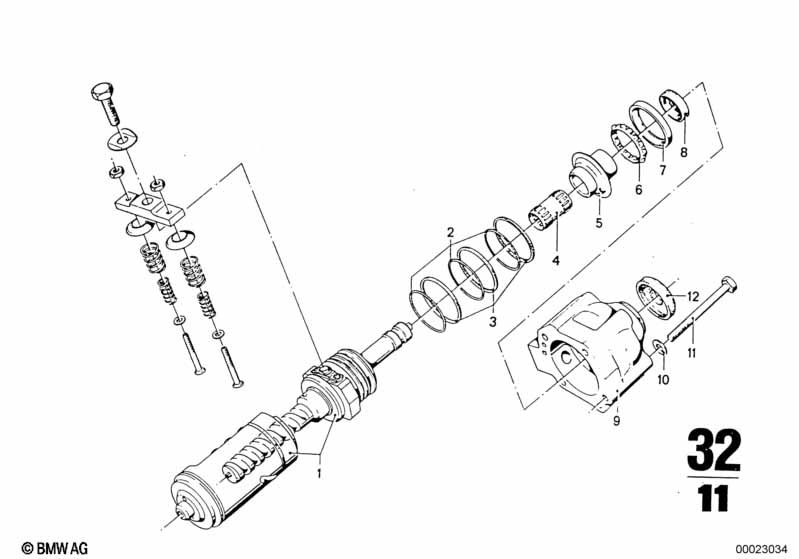

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Early version
01 Worm with piston 1 08/1968 02/1977 32131106744 ENDED
Late version
01 Worm with piston 1 09/1973 02/1977 32131118553 ENDED
02 O-ring 3 32131104790 $1.71 ENDED
03 Gasket ring 3 32131104789 $3.52
04 Needle cage 0,000-0,002 MM 1 32131104791 $8.93 ENDED
04 Needle cage 0,004-0,006 MM 1 32131104793 ENDED
04 Needle cage 0,006-0,008 MM 1 32131104794 ENDED
05 Guide ring D=28,000 MM 1 32131104795 ENDED
05 Guide ring D=28,015 MM 1 32131104796 ENDED
06 Bearing ball cage 1 32131104801 $6.81 ENDED
07 Guide ring 1 32131104835 $27.62 ENDED
08 Shaft seal 1 32131128686 $12.81
09 Valve housing 1 08/1968 02/1977 32131104833 ENDED
10 Washer 4 32131104836 ENDED
11 Hex bolt M8X80 4 07119912558 $2.89
12 Protection cap 1 32131126931 $2.73
Notes
  • ENDED = the part has been discontinued (no longer available).
