2500-3.3Li 2500 Hydro steering box

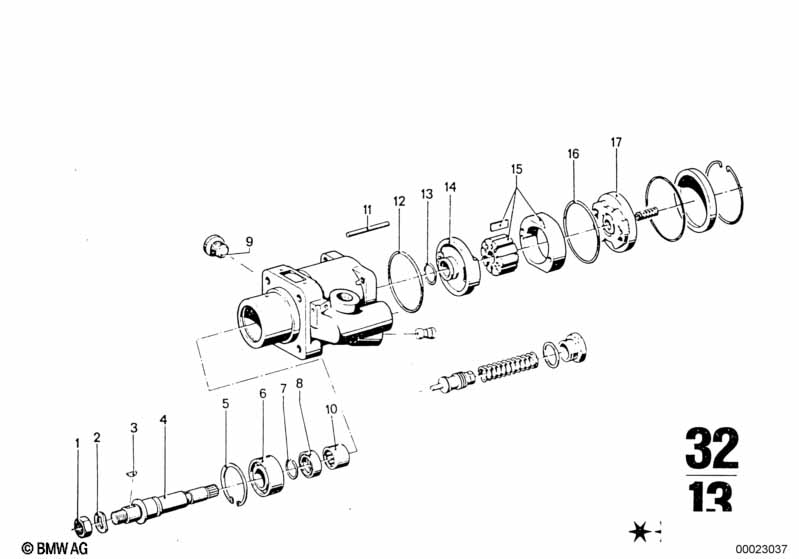

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Power steering

=Yes
01 Hex nut M14X1,5 1 07119901309 $1.65
02 Wave washer B14 1 07119932147 $0.20
03 Set woodruff key 25 4X5 1 07509064297 ENDED
04 Drive Shaft 1 32411105144 $87.05 ENDED
05 Lock Ring 42X1,75 1 07119935780 ENDED
06 Grooved ball bearing 20,0X42,0X16,0 1 32411105145 $37.92 ENDED
07 Snap ring 20 1 07119933441 $0.25 ENDED
08 Shaft seal 1 32411105146 $23.65
09 Screw plug 2 32411105148 ENDED
10 Needle bearing 17,0X25,0X16,0 1 32411105147 $22.33
11 Pin 1 32411105149 ENDED
12 O-ring 64X2,1MM 1 32411105150 $13.65
13 O-ring 1 32411105151 $13.65 ENDED
14 Plate,input side 1 32411105152 ENDED
15 Rotor set 1 32411105153 $224.32 ENDED
16 O-ring 1 32411105154 $4.76
17 Plate, cover side 1 32411105155 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
