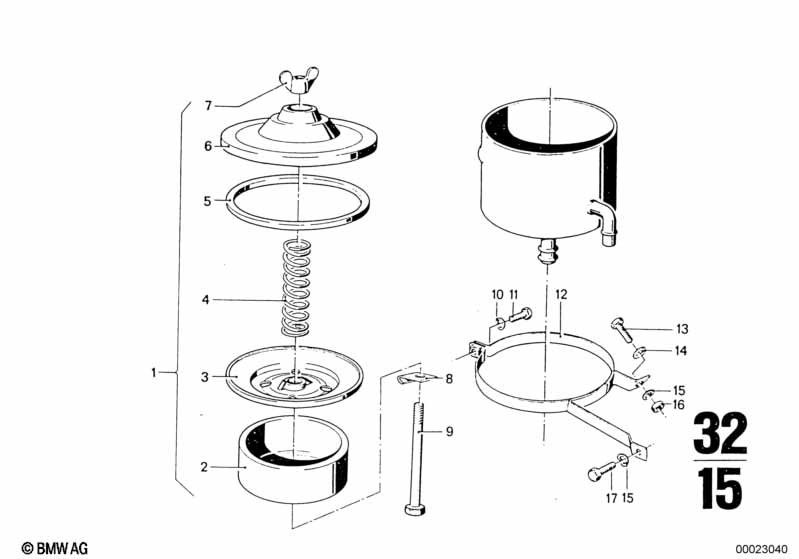

2500-3.3Li 2500 Hydro steering box

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Power steering

=Yes
01 Oil carrier 1 32411101150 $117.29 ENDED
02 Oil filter 1 32411104357 $33.80 ENDED
03 Cover 1 32411105163 ENDED
04 Compression spring 1 32411105164 $0.97 ENDED
05 Gasket ring 1 32411105165 $29.83 ENDED
06 Cover 1 32411121836 $42.71
07 Ring nut 1 61211233457 $0.88
08 Clip 1 32411105162 $0.43
09 Hex bolt M6X110 1 07119912378 $0.84 ENDED
10 Wave washer B6 1 07119932072 $0.09 ENDED
11 Hex bolt M6X20 1 07119913477 $0.18 ENDED
11 Hex bolt M6X20-8.8-ZNS 1 07119913016 $0.60
12 Holder 1 32411115962 $5.03 ENDED
13 Hex bolt M8X20 1 07/1990 07119913644 $0.20 ENDED
13 Hex bolt M8X20-ZNS 1 07/1990 07119901120 $0.60 ENDED
13 Hex bolt M8X20-ZNNIV SI 1 07119903039
14 Washer A8,4 1 02/1977 07119900052 $0.11 ENDED
14 Washer 8,4X16X1,6-ZNNV 1 07119907030
15 Wave washer B8 2 02/1977 07119932095 $0.09 ENDED
15 Wave washer 2 07119904115 $0.09
16 Hex nut M8-ZNS 1 02/1977 07119922856 $0.56 ENDED
16 Hex nut M8-8-ZNS3 1 02/1977 07119904032 $0.16
16 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
17 Hex bolt M8X12 1 02/1977 07119913616 $0.25 ENDED
17 Hex bolt M8X12 1 07119902914 $0.47
Notes
  • ENDED = the part has been discontinued (no longer available).
