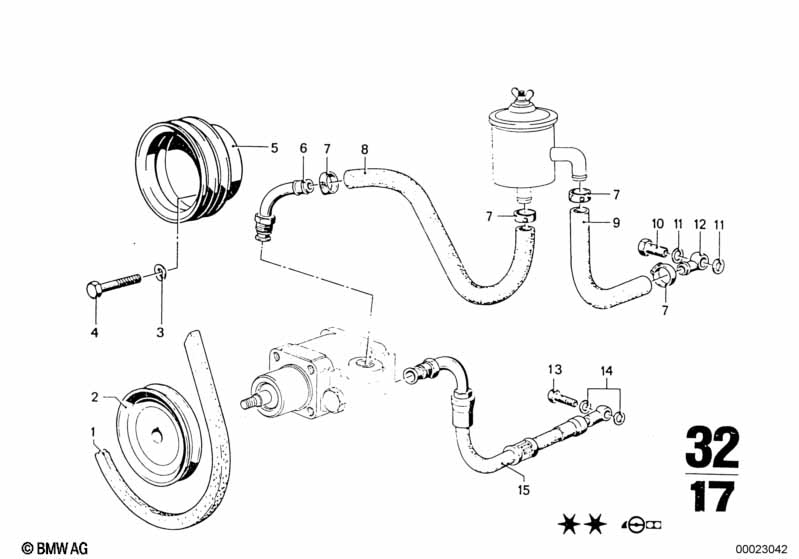

2500-3.3Li 2500 Hydro steering box

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Power steering

=Yes
01 Fan belt 9,5 X 1125 1 08/1968 09/1973 32411268688 $17.02
01 Fan belt 9,5 X 1075 1 05/1971 02/1977 32411268687 $22.83
01 Fan belt 9,5X900 1 09/1973 02/1977 32421711065 $15.00 ENDED
01 Fan belt 9,5X900 1 09/1973 02/1977 32421711067
02 Pulley 1 08/1968 09/1973 32411250623 $34.67 ENDED
02 Pulley 1 09/1973 02/1977 32411258275 $63.70
03 Washer A8,4 8 24111690120 $0.42
04 Hex bolt M8X16 8 07119913612 $0.62
05 Pulley 124MM 1 09/1973 02/1977 11211258274 $60.68
06 Connector S FORM 1 32411121531 $39.90 ENDED
06 Connector L FORM 1 09/1973 02/1977 32411117545 $26.23
07 Hose clamp L18-24 4 07129952109 $1.07
08 Hose 16X22MM X 32411131545 $45.93
09 Hose 16X22MM X 32411131545 $45.93
10 Hollow bolt M18X32 1 32411117183 $7.53
11 Gasket ring A18X22-CU 2 07119963308 $0.25
12 Connector 1 32411124690 ENDED
13 Hollow bolt M14X1,5X26 1 11361740290 $2.67 ENDED
13 Hollow bolt M14X1,5X26 1 32411094908 $2.78 ENDED
13 Hollow bolt M14X1,5X26 1 32416783886 $2.11 ENDED
13 Hollow bolt M14X1,5X26 1 32416852469
14 Gasket ring A14X18-CU 2 07119963201 $0.18
15 Pressure hose assy 1 32411117565 $122.86 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
