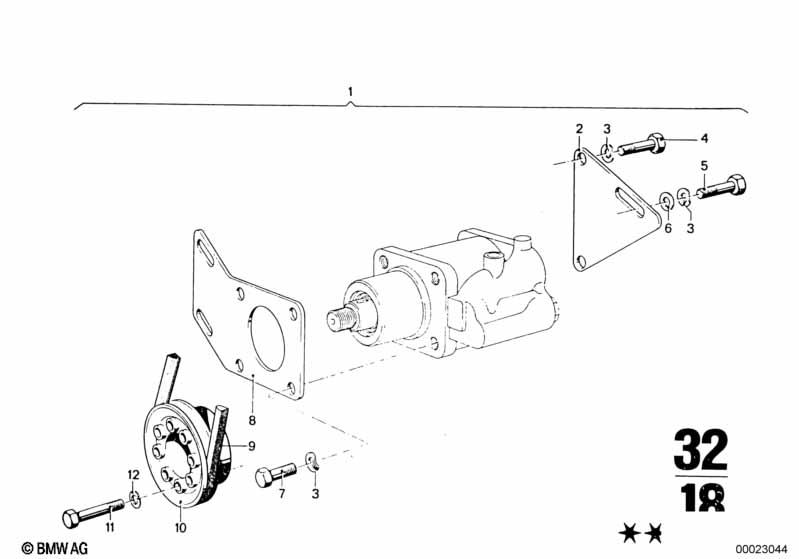

2500-3.3Li 2500 Hydro steering box

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Air conditioning

=No
01 Retrofit kit, vane pump drive 1 32411259391 ENDED
02 Supporting plate 1 32411265846 $5.07
03 Wave washer B8 7 09/1973 07119932095 $0.09 ENDED
03 Wave washer 7 07119904115 $0.09
04 Hex bolt M8X25 2 07119913657 $0.36 ENDED
04 Hex bolt M8X25-8.8-ZNS 2 07119901125 $0.84
05 Hex bolt M8X22 1 09/1973 07119913652 $0.62 ENDED
05 Hex bolt M8X22-8.8-ZNS3 1 07119904040
06 Washer 1 11614000131 $1.80
07 Hex bolt M8X20 4 07/1990 07119913644 $0.20 ENDED
07 Hex bolt M8X20-ZNS 4 07/1990 07119901120 $0.60 ENDED
07 Hex bolt M8X20-ZNNIV SI 4 07119903039
08 Supporting plate 1 32411276638 $43.56 ENDED
09 Fan belt 9,5X888 1 09/1973 32411259409 $52.17 ENDED
09 Fan belt 9,5X888 1 09/1973 32421706750 $16.81 ENDED
09 Fan belt 9,5X888 1 32421718953
10 Pulley 1 32411259343 ENDED
11 Hex bolt M8X45 8 07119912506 $0.41 ENDED
11 Hex bolt M8X45-8.8-ZNS3 8 07119902955 $0.62
12 Spring washer B8 8 07119933096 $0.18
Notes
  • ENDED = the part has been discontinued (no longer available).
