2500-3.3Li 2500 Steering column

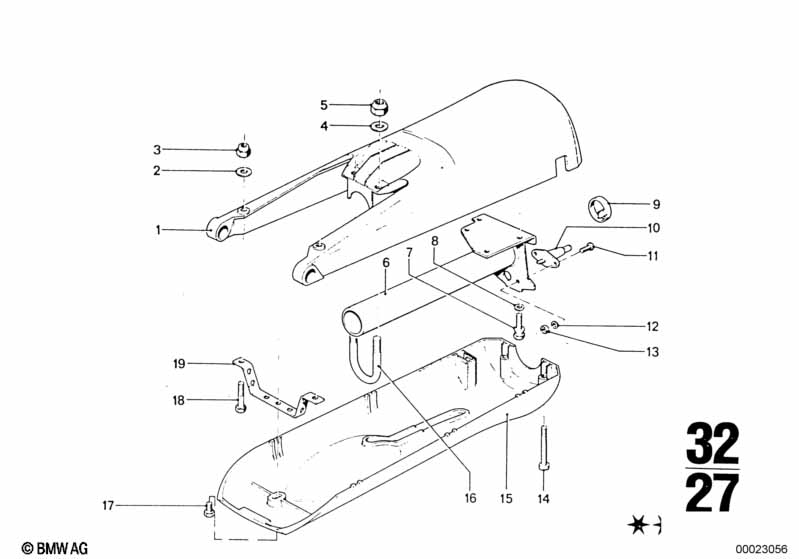

Steering column
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim panel upper part 1 32311117300 $65.45 ENDED
02 Washer 6,4 2 02/1977 07119931044 $0.58 ENDED
02 Washer A6,4-ZNS 2 02/1977 07119931018 $0.40 ENDED
02 Washer A6,4-ZNNIV SI 2 07119904202
03 Self-locking hex nut M6 2 07129922705 $0.27
04 Washer A8,4 2 02/1977 07119900052 $0.11 ENDED
04 Washer 8,4X16X1,6-ZNNV 2 07119907030
05 Self-locking hex nut M8 2 03/1987 07129922714 $0.17 ENDED
05 Self-locking hex nut M8 2 02/1977 07129946400 $0.35 ENDED
05 Self-locking hex nut M8-8-ZNNIV SI 2 07129905767 $0.27 ENDED
05 Self-locking hex nut M8-8-ZNNI SI 2 07129906196 $1.60
06 Steering column tube 1 32311111726 ENDED
07 Fracture bolt M6X14 4 32321109641 $1.39
08 Wave washer B6 4 07119932072 $0.09 ENDED
09 Retainer 1 32321118825 $15.17
10 Carbon pin 1 32331350750 $7.64 ENDED
11 Fillister head screw M5X12-ZN 2 07119907627 $0.43
12 Wave washer B5 2 02/1977 07119932047 $0.09 ENDED
12 Wave washer B5 2 07119932098 $0.38
13 Hex nut M5 2 07119922038 $0.09
14 Fillister head screw M6X55 2 07119906437 $0.45
15 Lower trim panel 1 32311152991 $25.83 ENDED
16 Bow 1 32311111789 $8.59 ENDED
17 Set fillister head screw 10 M6X8 1 07509064349 ENDED
18 Hex bolt M6X45 2 02/1977 07119912327 $0.22 ENDED
18 Hex bolt M6X45 8.8 ZNS3 2 07119902976 $0.45
19 Holder 1 32311112909 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
