2500-3.3Li 2500 Moldings

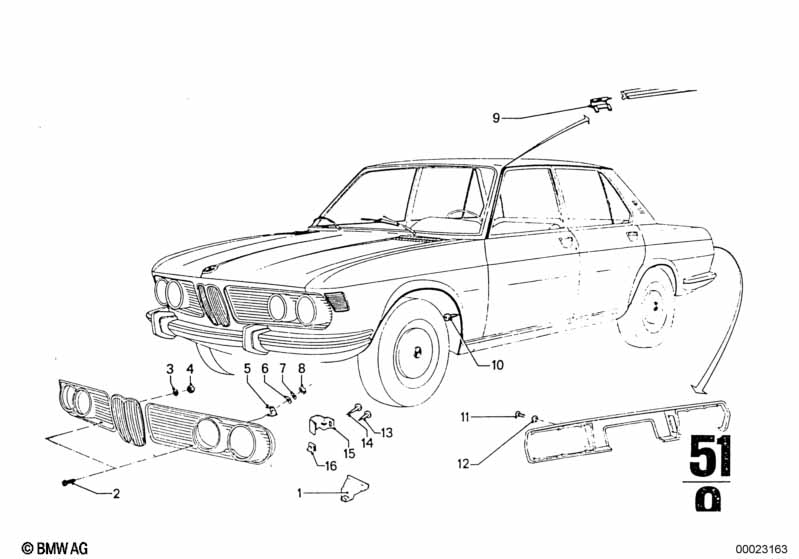

Moldings
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Bracket 1 51131806911 $4.85 ENDED
02 Recessed oval head sheet-metal screw ST3,9X13 10 07119902459 $1.55
03 Wave washer B5 4 07119932098 $0.38
04 Set spring washer 50 B4 7 07509063158 ENDED
05 Support 2 51141804918 $0.73 ENDED
07 Set spring washer 50 B4 2 07509063158 ENDED
08 Set nut 25 M4 2 07509064279 ENDED
09 Clamp 8 51131863499 $0.23
10 Fillister head self-tapping screw ST2,9X6,5 2 07119907701 $1.91
11 Fillister head screw M4X10 3 07119907616 $1.07
12 Washer 4,3 2 02/1977 07119936412 $0.09 ENDED
12 Washer 2 07119904207
13 Set fillister head self-tapping screw 20 ST3,9X19 10 07509063296 ENDED
14 Set fillister head self-tapping screw 20 ST3,9X25 2 07509064382 ENDED
15 Support 2 41331808574 $0.67 ENDED
16 Set body nut 25 B3,9 10 07509063360 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
