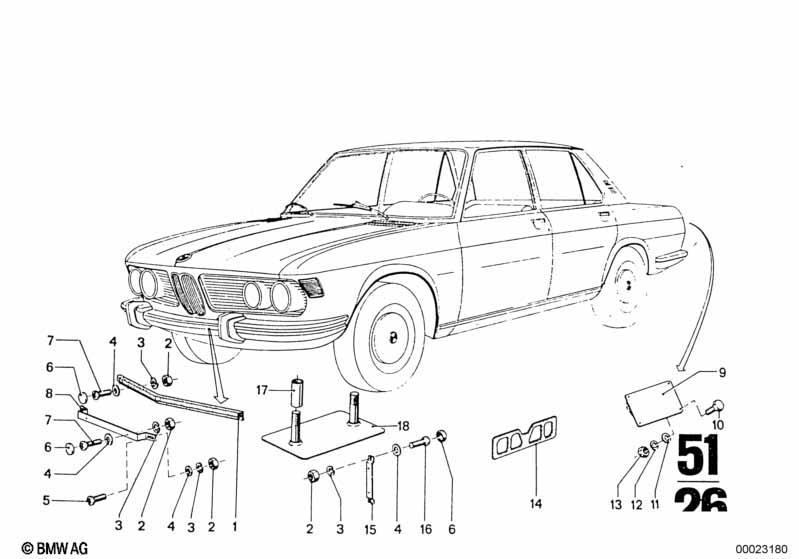

2500-3.3Li 2500 Registration plate mounting

Registration plate mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Base 1 08/1968 02/1977 51181800439 ENDED
01 Base 1 08/1968 02/1977 51115470019 $50.54
02 Hex nut M5 2 07119922038 $0.09
03 Spring washer B5 2 07119933060 $0.11
04 Washer A5,3-140 HV-ZNS 1 02/1977 07119931029 $0.40 ENDED
04 Washer 10X5,3X1-200 HV 1 07119904206
04 Washer 5,3-140 HV-ZNS 1 07119936439 $0.40
06 Covering cap WEISS 2 51181813017 $0.21
06 Covering cap SCHWARZ 2 51181823474 $0.21
07 Screw 4 51181813014 $0.28 ENDED
For vehicles with
National version italy

L814A=Yes
09 Base 1 08/1968 02/1977 51181808579 ENDED
10 Hex bolt M6X12 2 08/1968 02/1977 07119913442 $0.25 ENDED
10 Hex bolt M6X12-8.8-ZNNIV 2 08/1968 02/1977 07119905524 $0.27
11 Washer 6,4 2 08/1968 02/1977 07119931044 $0.58 ENDED
11 Washer A6,4-ZNS 2 08/1968 02/1977 07119931018 $0.40 ENDED
11 Washer A6,4-ZNNIV SI 2 08/1968 02/1977 07119904202
12 Spring washer B6 2 08/1968 02/1977 07119933082 $0.09
13 Hex nut M6-8-ZNS 2 08/1968 02/1977 07119922832 $0.37 ENDED
13 Hex nut M6-8-ZNNIV SI 2 08/1968 02/1977 07119905543 $0.38
14 Base 1 51181804114 $18.86 ENDED
16 Screw 2 51181813015 $0.27
Notes
  • ENDED = the part has been discontinued (no longer available).
