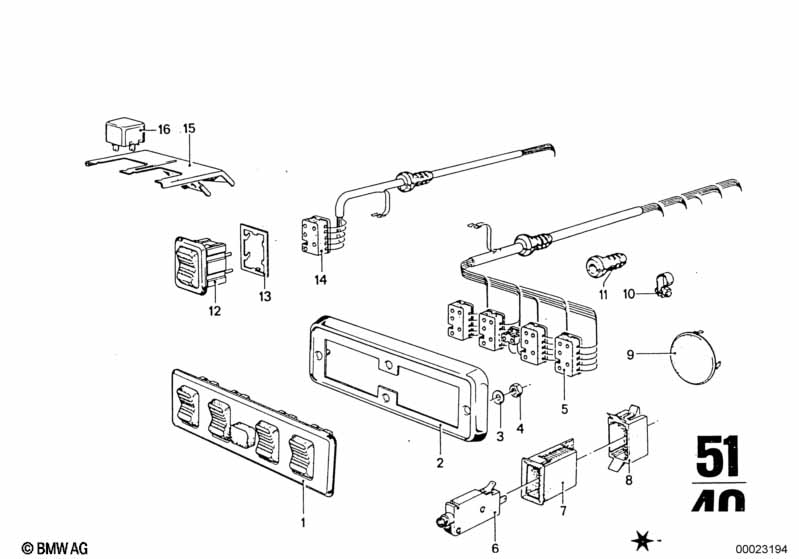

2500-3.3Li 2500 Switch combination electr.wind.lift.

Switch combination electr.wind.lift.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Switch combination electr.wind.lift. 1 61311356531 $96.68
02 Switch cover 1 51411823490 $20.24
03 Washer 4,3 4 02/1977 07119936412 $0.09 ENDED
03 Washer 4 07119904207
04 Hex nut M4 4 07119922028 $0.64
05 Wiring electr.window drivers side 1 61121356182 ENDED
06 Circuit breaker 1 61131358777 $37.79
07 Switch support 2 61131356871 $2.46
08 Holder 2 61131356870 $1.68
09 Cap SCHWARZ 1 08/1968 02/1977 51411869871 $5.44
10 Clamp 2 51351809839 ENDED
11 Cable grommet 2 61131356042 $2.66
12 Rocker switch 3 61311356006 $47.30
13 Switch cover 4 51411822904 $2.34 ENDED
14 Wiring electr.window co-drivers side 1 61121356066 ENDED
15 Holder 1 61311356164 ENDED
16 Relay GELB 2 61311373585 $23.75 ENDED
16 Mini-relay 2 61311373588 $11.38
Notes
  • ENDED = the part has been discontinued (no longer available).
