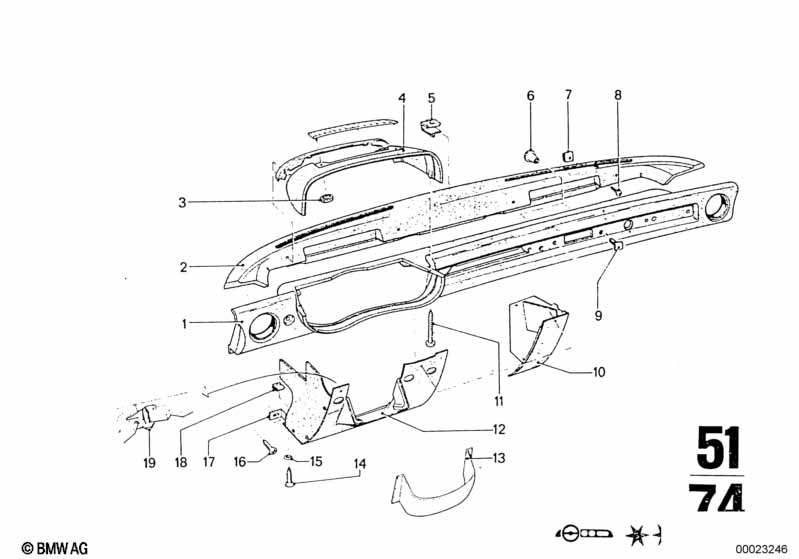

2500-3.3Li 2500 Trim panel

Trim panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim panel 1 51451800582 ENDED
02 Trim panel 1 51451800581 ENDED
03 Button 3 62128680120 $1.23
04 Cover 1 51451801251 ENDED
05 Clamp 5 51451800090 ENDED
06 Button 2 51451802117 ENDED
07 Body nut ST4,2-1 9 05/1999 07129925709 $0.11 ENDED
07 Body nut 4,2-1-ZNS 9 07129901644 $0.09 ENDED
07 Body nut 4,2-1-ZNS3 9 07129904220 $0.09
08 Set fillister head self-tapping screw 20 ST4,8X9,5 4 07509064400 ENDED
09 Clamp 2 51451802070 ENDED
10 Trim panel 1 51451824174 ENDED
11 Fillister head self-tapping screw B4,8X50 1 07119906773 $0.28 ENDED
13 Cup 1 51451807595 ENDED
14 Set recess.oval head sheet-metal screw20 ST4,2X19 1 07509064409 ENDED
14 Recessed oval head sheet-metal screw ST4,2X19 1 07119902468 $0.11
15 Hollow washer D=5MM 5 51451801523 $0.56 ENDED
15 Hollow washer 5 51211859979 $0.40
16 Fillister head self-tapping screw ST4,2X9,5 1 07119907741 $0.09 ENDED
17 Holder 1 51451805996 ENDED
18 Body nut ST4,2-4 8 07129925708 $0.11 ENDED
18 Set body nut 25 ST4,2-4 8 07509063123 $1.83 ENDED
18 Body nut ST4,2-2ZNS 8 07129901645 $0.11
19 Recessed oval head sheet-metal screw ST2,9X13 3 07119902412 $1.30
Notes
  • ENDED = the part has been discontinued (no longer available).
