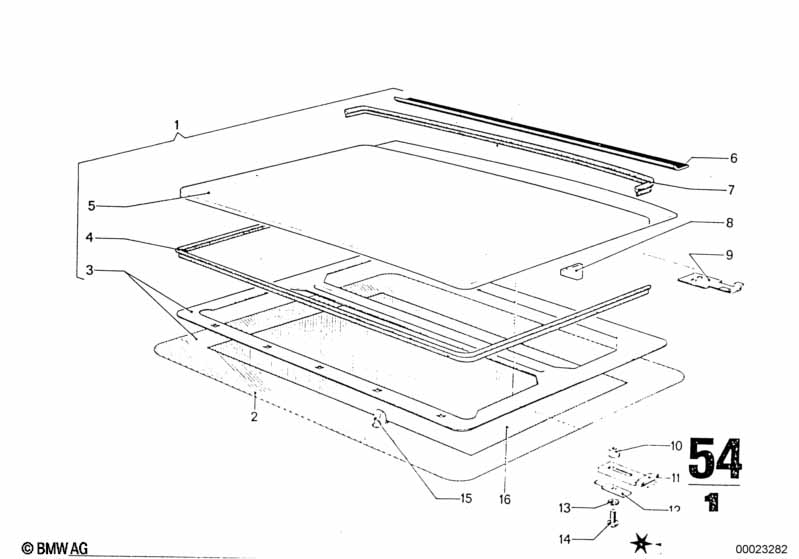

2500-3.3Li 2500 Sliding roof

Sliding roof
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit sliding roof 1 54129734100 ENDED
01 Repair kit sliding roof electr. 1 54129734102 ENDED
02 Headlining B=1350MM X 51951817302 $48.76
03 Ceiling frame 1 54129734109 $118.30 ENDED
04 sealing GRAU 1 54129734131 $38.04
05 Cover 1 54129734140 $408.46 ENDED
06 Rubber seal 1 54121801211 $25.66
07 sealing GRAU 1 54129734130 $38.04
08 Sliding piece 2 54129734122 $2.43
09 Reinforcement 2 54129734161 ENDED
10 Knurled head nut 4 54129734162 $5.43
11 Guide 2 54121815185 $9.76 ENDED
12 Securing plate 2 54121815189 $4.75
15 Clamp 7 54129634116 $1.51
16 Bottom panel sliding roof 1 54129734107 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
