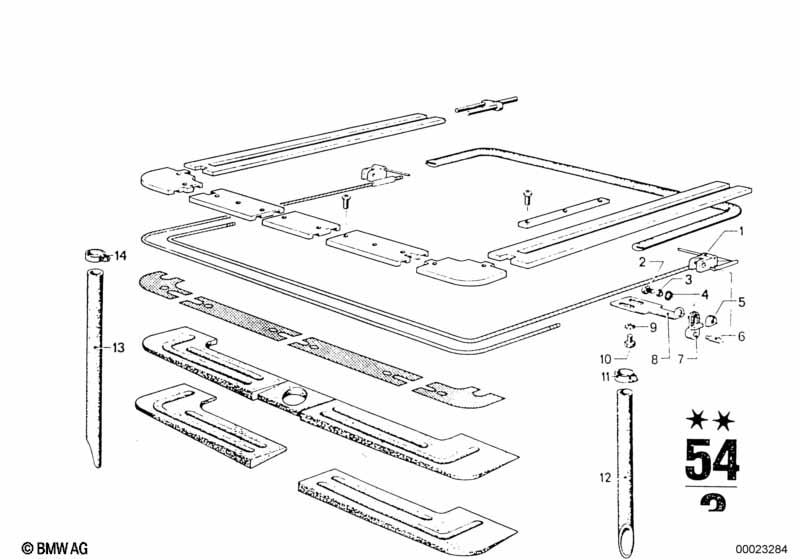

2500-3.3Li 2500 Sliding roof

Sliding roof
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Guide left 1 54121801433 $105.61
01 Guide right 1 54121801434 $105.61
02 Screw 2 54121813693
03 Bush 2 54121813694 $1.97
04 Securing plate 2 54129734159
05 Nut 2 54129734160 ENDED
06 Dowel pin 5 M6X14 2 07119942072 ENDED
07 Lever 2 54121801410 ENDED
08 Support 2 54129734175
09 Washer A4,3 4 07119936610 ENDED
10 Hex bolt M4X6 4 07119913071 ENDED
11 Hose clamp 2 54129434149 $0.45
12 Hose 1520MM 2 08/1968 02/1977 51731817660 ENDED
13 Hose 2 54129434146 ENDED
14 Hose clamp 2 54129434148 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
