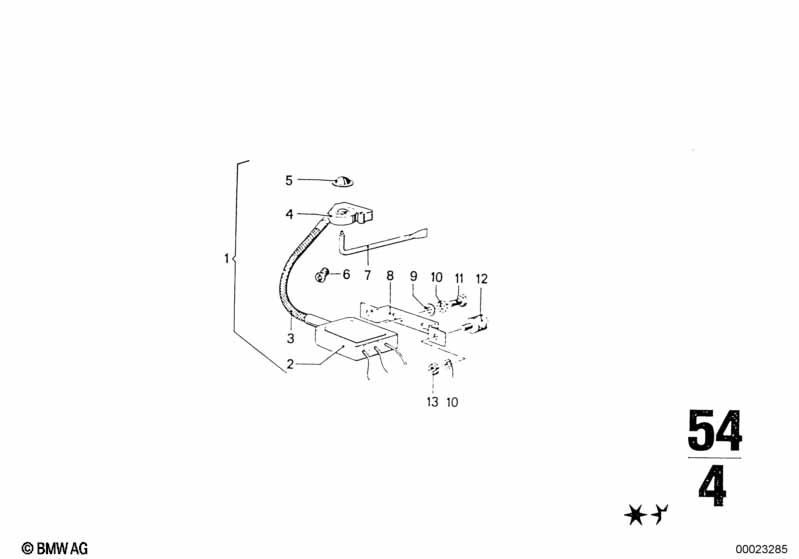

2500-3.3Li 2500 Electr.drive sliding roof

Electr.drive sliding roof
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Electr.drive sliding roof 1 08/1968 02/1977 54121832607 ENDED
02 Electr.drive 1 08/1968 02/1977 54121352715 $235.48 ENDED
02 Electr.drive 1 08/1968 02/1977 54121358021 ENDED
03 Bowden cable 1 54139734132 $38.81
04 Electr.sliding-lifting roof transmission 1 54139734134 ENDED
05 Screw 2 54139734156 ENDED
06 Covering cap 1 54121806989 ENDED
07 Emergency mechanism 1 54121834838 $27.90 ENDED
08 Support 1 08/1968 02/1977 54121832603 ENDED
08 Support 1 08/1968 02/1977 54139634175 ENDED
09 Washer 6,4 2 02/1977 07119931044 $0.58 ENDED
09 Washer A6,4-ZNS 2 02/1977 07119931018 $0.40 ENDED
09 Washer A6,4-ZNNIV SI 2 07119904202
10 Set spring washer 20 B6 4 07509064025 ENDED
11 Hex bolt M6X12 2 07119913442 $0.25 ENDED
11 Hex bolt M6X12-8.8-ZNNIV 2 07119905524 $0.27
12 Rubber Mounting 2 54139634176 ENDED
12 Rubber Mounting 1 08/1968 02/1977 54121832606 ENDED
13 Hex nut M6-8-ZNS 2 07119922832 $0.37 ENDED
13 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
