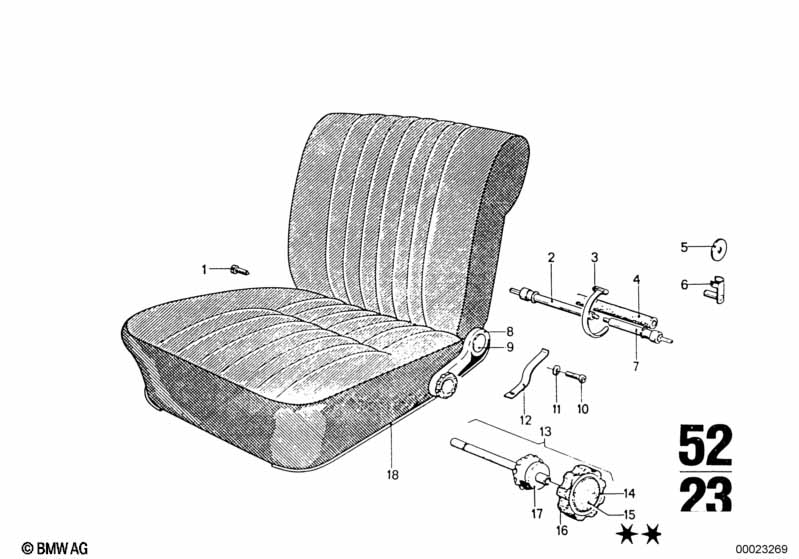

2500-3.3Li 2500 Reclining seat fitting

Reclining seat fitting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Csk.fillister head srew 4 52101803327 ENDED
02 Shaft 1 52101807141 ENDED
05 Washer 2 52101803518 ENDED
06 Pin 1 52101804329 ENDED
07 Shaft 1 52101807142 ENDED
08 Recl. seat fitting left 1 52101800599 ENDED
08 Recl. seat fitting right 1 52101800600 ENDED
09 Cover 2 52101802919 ENDED
10 Fillister-head screw 1 52101803517 $0.61 ENDED
11 Washer 4 52101804234 ENDED
12 Spring 1 52101805033 $0.55 ENDED
12 Spring 1 52101805034 ENDED
13 Control handle 1 52101840362 ENDED
14 Cover 2 52101802920 ENDED
15 Cover 1 52101840365 ENDED
16 Control handle 2 52101802915 ENDED
17 Bevel gear 1 52101840364 ENDED
18 Intermediate piece 1 52101801667 ENDED
18 Intermediate piece 1 52101801668 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
