2500-3.3Li 3.0Si Fuel tank

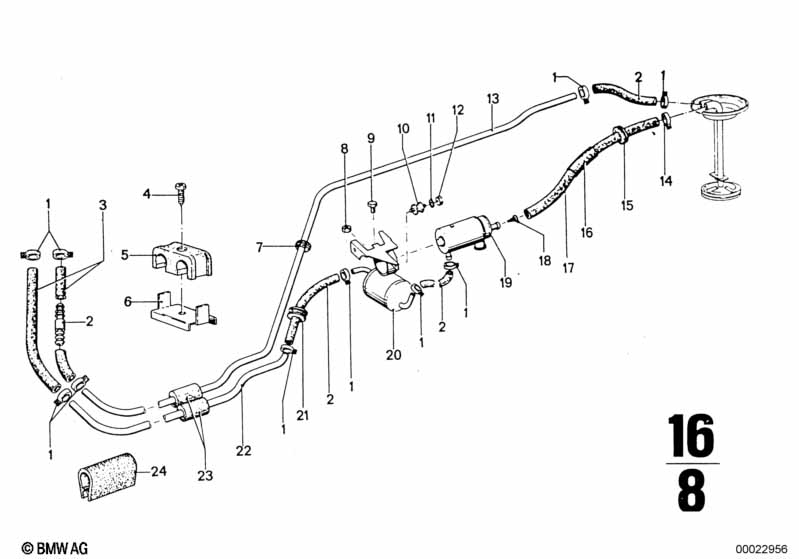

Fuel tank
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hose clamp L10-12 5 01/1979 16111177646 $0.88 ENDED
01 Hose clamp L=9-12 5 07129952102 $1.18
03 Fuel hose 8X13MM X 16121180409 $20.43
07 Grommet 1 16124780109 $1.51
08 Self-locking hex nut M6 1 07129922705 $0.27
09 Hex bolt M6X20-8.8-ZNS 1 07119913016 $0.60
10 Rubber Mounting 3 16121177891 $10.82
12 Hex nut M6-8-ZNS 6 07119922832 $0.37 ENDED
12 Hex nut M6-8-ZNNIV SI 6 07119905543 $0.38
13 Fuel pipe 1 09/1971 02/1977 16121108129 $30.52 ENDED
14 Hose clamp L15-19 2 07129952107 $0.93
15 Rubber grommet 2 16121107262 $3.39
17 Fuel hose 12X18 X 16121176440 $15.25
18 Filter cartridge 1 09/1971 02/1977 16121110497 ENDED
19 Fuel pump 1 16121107414 $924.45 ENDED
19 Fuel pump 1 16121115862 $231.01 ENDED
19 Fuel pump 1 16141178751 $387.81
20 Bracket with expansion unit 1 16121111541 $136.33
21 Rubber grommet 1 16121105846 $10.57
22 Return pipe 1 09/1971 02/1977 16121111535 $27.58
23 Rubber grommet 21 09/1971 02/1977 16124584137 $2.26
Notes
  • ENDED = the part has been discontinued (no longer available).
