2500-3.3Li 3.0Si Fuel tank

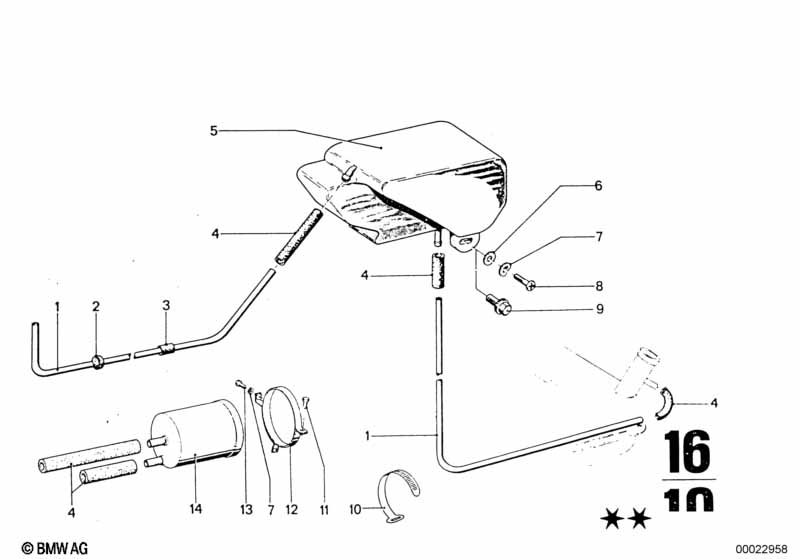

Fuel tank
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
National version japan
or
National version Australia

L807A=Yes

L810A=Yes
01 Vent pipe 1 16121108780 $2.06 ENDED
02 Grommet 10,5MM 1 08/1968 02/1977 61218050550 $0.35
03 Rubber grommet 13 08/1968 02/1977 34324050540 $1.32
04 Fuel hose 6X11MM X 08/1968 02/1977 13311272750 $11.62
05 Expansion tank 1 16111111351 $87.50 ENDED
10 Cable tie L=292MM/B=4,8MM 2 09/1971 02/1977 61131377134 $0.77
11 Hex bolt M6X16-8.8-ZNS3 1 08/1968 02/1977 07119904357 $0.36
12 Clamp 1 09/1971 02/1977 16121113517 ENDED
13 Hex bolt M6X12-8.8-ZNNIV 2 08/1968 02/1977 07119905524 $0.27
14 Activated Charcoal Filter 1 08/1968 02/1977 16121108926 $131.24 ENDED
14 Activated Charcoal Filter 1 08/1968 02/1977 16121108967 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
