2500-3.3Li 3.0Si Pedals supporting bracket/brake pedal

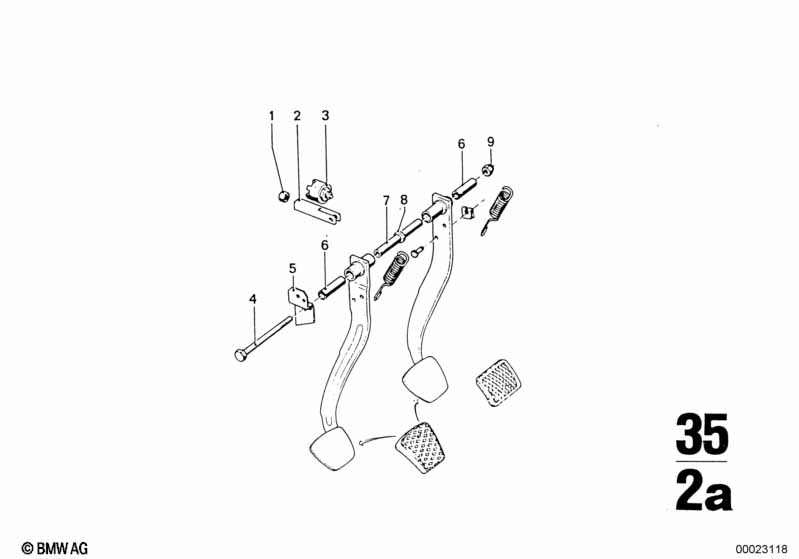

Pedals supporting bracket/brake pedal
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hex nut M10-8-ZNS 1 08/1968 02/1977 07119915558 $0.88
02 Forkhead 1 08/1968 02/1977 34311112608 $4.30
03 Stop light switch 1 08/1968 02/1977 61311368786 $38.77
04 Hex bolt M10X140 1 07119912733 ENDED
05 Holder 1 08/1968 02/1977 61311351225 ENDED
05 Holder 1 09/1971 02/1977 61311357518 ENDED
06 Bushing D=18,1MM 4 08/1968 02/1977 35211109541 $1.84
07 Sleeve 1 02/1969 02/1977 35211100956 $5.08
09 Set nut 25 M10 1 07509063128 ENDED
09 Self-locking hex nut M10 1 07129964672 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
