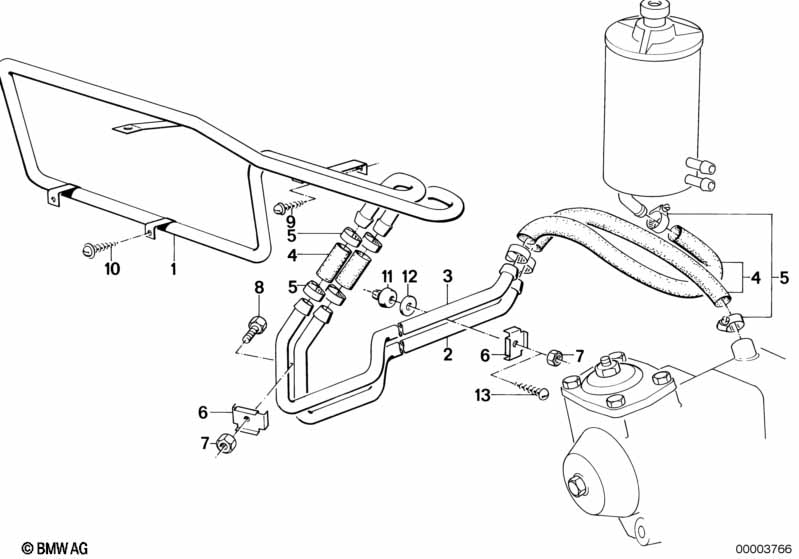

7' E23 728i Hydro steering-oil pipes

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe 1 32411128876 ENDED
02 Pipe 1 32411128875 ENDED
03 Pipe 1 32411128877 ENDED
04 Hose 12X18MM X 32411131524 $35.95
05 Hose clamp L15-19 8 07129952107 $0.93
06 Clamp 2 17221116130 $2.85
07 Hex nut M6 2 08/1996 23112322368 $0.38 ENDED
07 Hex nut M6-8-ZNS 2 07119922832 $0.37 ENDED
07 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38
08 Hex bolt M6X22 1 07119913475 $0.25 ENDED
08 Hex bolt M6X22-8.8-ZNS3 1 07119904505 $0.38
09 Fillister head self-tapping screw ST4,8X13 1 07119907786 $0.11
10 Fillister head self-tapping screw ST4,2X9,5-Z1 2 07119907812 $0.38
11 Plug-in nut 1 32411130722 ENDED
12 Washer 6,4 1 05/1986 37211119646 $0.33 ENDED
12 Washer 6,4X25X1,5 1 07146977329 $0.64
13 Hex head screw ST5,5X25-C-Z2 1 07119916957 $0.30 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
