7' E23 733i Front seat unlocking

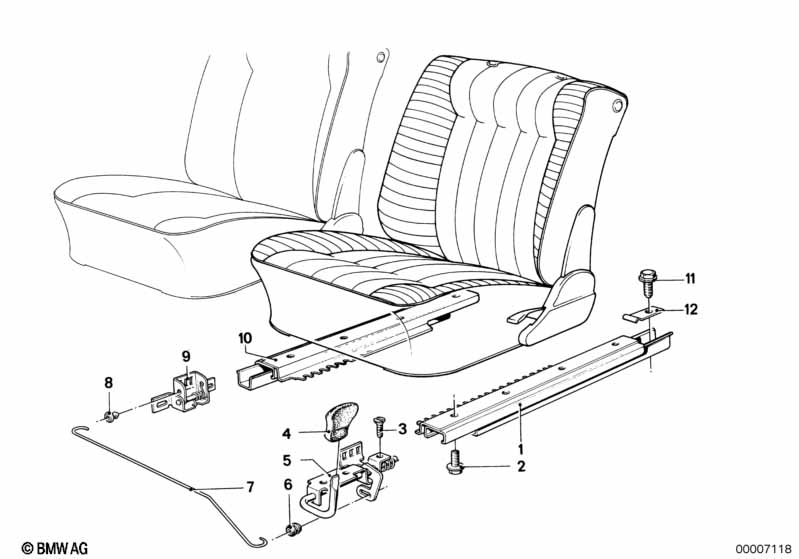

Front seat unlocking
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Ausführung 721
01 Seat rail left 1 09/1979 52101817771 ENDED
01 Seat rail right 1 09/1979 52101817772 $22.32 ENDED
02 Hex bolt M6X18 X 09/1979 52101817572 $0.26 ENDED
02 Hex bolt M6X18 X 09/1979 52101831403 $0.31 ENDED
03 Countersunk head screw M6X12 6 09/1979 52101817063 $0.92
04 Handle 2 09/1979 52101803743 $10.19
05 Seat catch outer left 1 09/1979 52101852651 ENDED
05 Seat catch outer right 1 09/1979 52101852652 ENDED
06 Grommet 2 09/1979 52101807432 $7.28
07 Connection rod, seat catch 1 09/1979 52101854391 ENDED
08 Grommet 2 09/1979 51216442159 $0.33 ENDED
08 Grommet 2 09/1979 52208238999 $0.40
09 Seat catch inner left 1 09/1979 52101807471 ENDED
09 Seat catch inner right 1 09/1979 52101807472 ENDED
10 Seat rail left 1 09/1979 52101817771 ENDED
10 Seat rail right 1 09/1979 52101817772 $22.32 ENDED
11 Hex bolt M6X18 8 09/1979 52101817572 $0.26 ENDED
11 Hex bolt M6X18 8 09/1979 52101831403 $0.31 ENDED
12 Bracket left 2 09/1979 52101802805 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
