7' E23 733i Front seat-seat riser

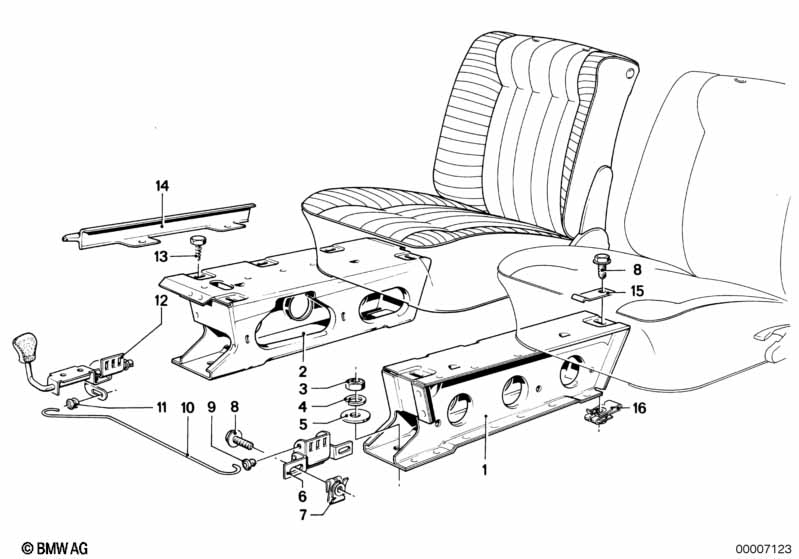

Front seat-seat riser
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Ausführung 721
01 Seat support inner right 1 09/1979 52101850418 ENDED
02 Seat support outer right 1 09/1979 52101850420 ENDED
03 Hex nut M8-ZNS 2 09/1979 07119922856 $0.56 ENDED
03 Hex nut M8-8-ZNS3 2 09/1979 07119904032 $0.16
03 Hex nut M8-8-ZNNIV SI 2 09/1979 07119905515 $0.16
04 Spring washer B8 2 09/1979 07119933096 $0.18
05 Washer 8,4 2 09/1979 07119936441 $0.78 ENDED
05 Washer 8,4X24X2-ZNS3 2 09/1979 07119904164 $0.40
06 Seat catch inner left 1 09/1979 52101807471 ENDED
06 Seat catch inner right 1 09/1979 52101807472 ENDED
07 Nut holder 2 09/1979 51161813920 $1.45 ENDED
08 Hex bolt M6X25 6 09/1979 52101820255 $0.35 ENDED
09 Grommet 2 09/1979 51216442159 $0.33 ENDED
09 Grommet 2 09/1979 52208238999 $0.40
10 Connection rod 1 09/1979 52101817083 $3.74 ENDED
10 Connection rod, passenger's side 1 09/1979 52101859859 $3.74 ENDED
11 Grommet 2 09/1979 52101807432 $7.28
12 Seat catch outer right 1 09/1979 52101851326 $22.21 ENDED
13 Hex head screw ST6,3X19-C-Z1 3 09/1979 07119916970 $0.30
14 Covering right 1 09/1979 52101848472 ENDED
15 Bracket left 2 09/1979 52101802805 $0.38
16 Nut holder M6 4 09/1979 52101828543 $1.15
Notes
  • ENDED = the part has been discontinued (no longer available).
