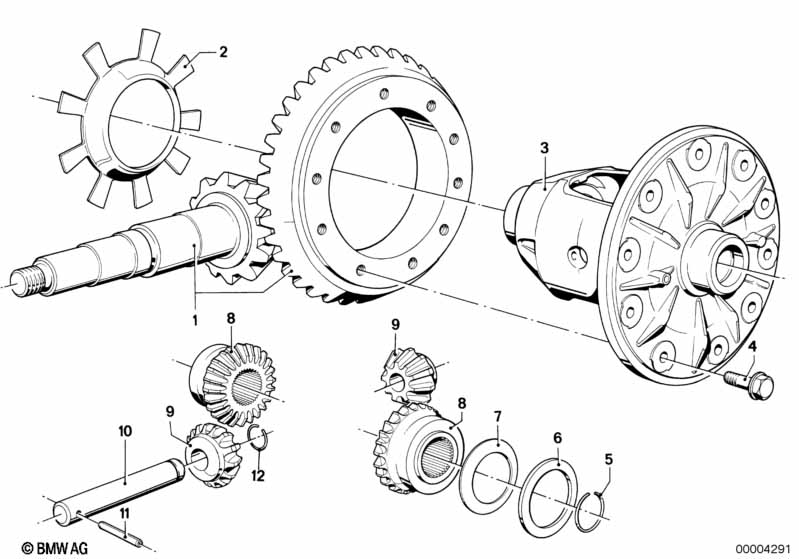

7' E23 745i Crowngear set/differential case

Crowngear set/differential case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Crowngear set I=40:13=3,07 1 05/1983 33121208993 $508.90 ENDED
02 Impulse sending wheel 1 33131211284 $10.60 ENDED
03 Differential case 1 33131206829 $363.82 ENDED
03 Differential case TYP 210 1 33131212970 $203.11 ENDED
04 Hexagon antifatigue bolt M12X1,5X24 X 33121205560 $2.34 ENDED
04 Hexagon antifatigue bolt M12X1,5X24 12.9 X 33121205561 $1.86
05 Lock Ring TYP 230K 2 33141206439 $1.97
06 Shim 2,400MM 2 33131204720 ENDED
06 Shim 2,450MM 2 33131204721 ENDED
06 Shim 2,500MM 2 33131204722 ENDED
06 Shim 2,550MM 2 33131204723 ENDED
06 Shim 2,600MM 2 33131204724 ENDED
06 Shim 2,650MM 2 33131204725 ENDED
06 Shim 2,700MM 2 33131204726 ENDED
06 Shim 2,750MM 2 33131204727 ENDED
06 Shim 2,800MM 2 33131204728 ENDED
07 Diaphragm spring 2 33131204730 ENDED
08 Side gear 2 33131204716 $50.05 ENDED
09 Bevel gear 2 33131204715 ENDED
10 Bevel gear shaft 1 33131204379 ENDED
11 Roll pin 5X40 1 07119941377 $0.22
Notes
  • ENDED = the part has been discontinued (no longer available).
